Tailored & handmade

with our love to all its details

Take a look on some recent builds. What-for we  using the best products and materials in the market to insure our clients get the best quality frames and forks. 100% hand-shaped.


With the composition of the exquisite parts we create the perfect ride for you.

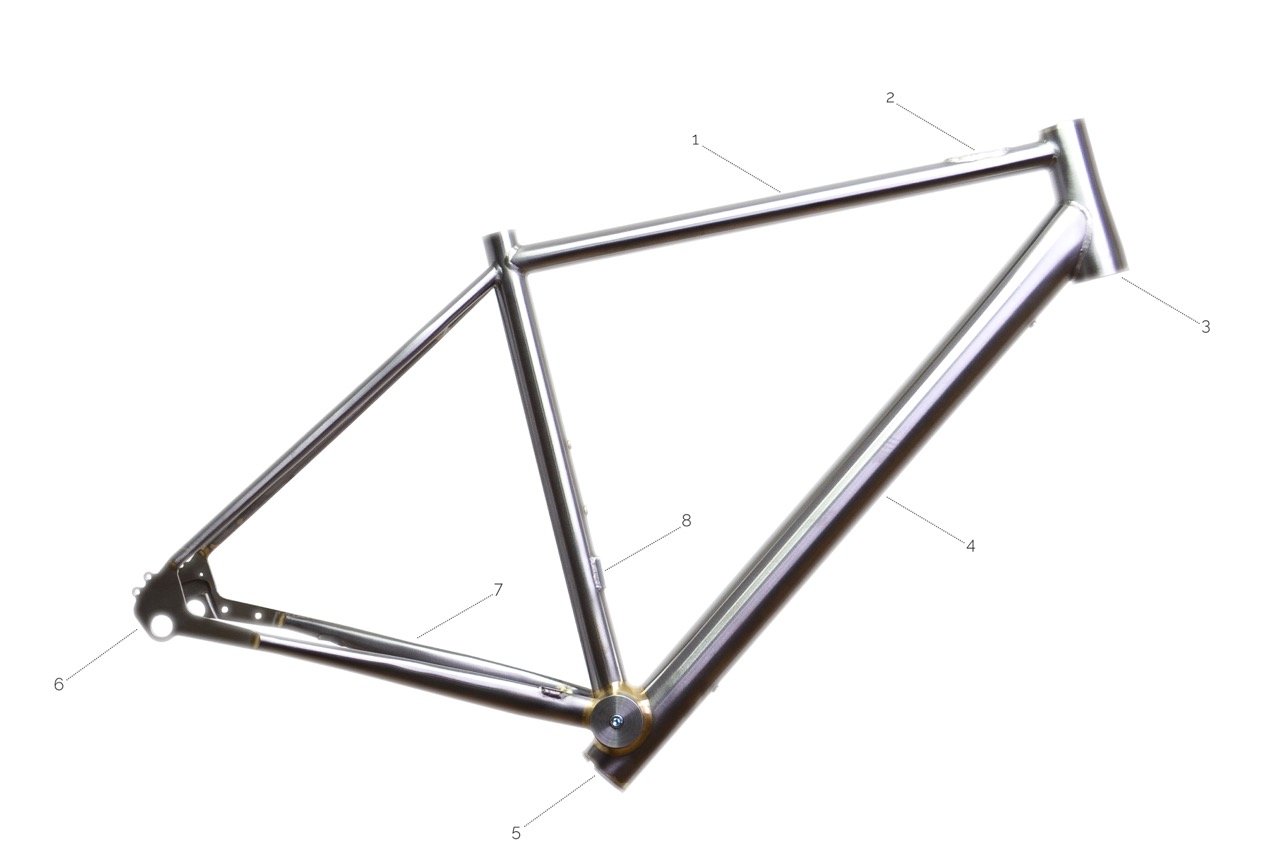

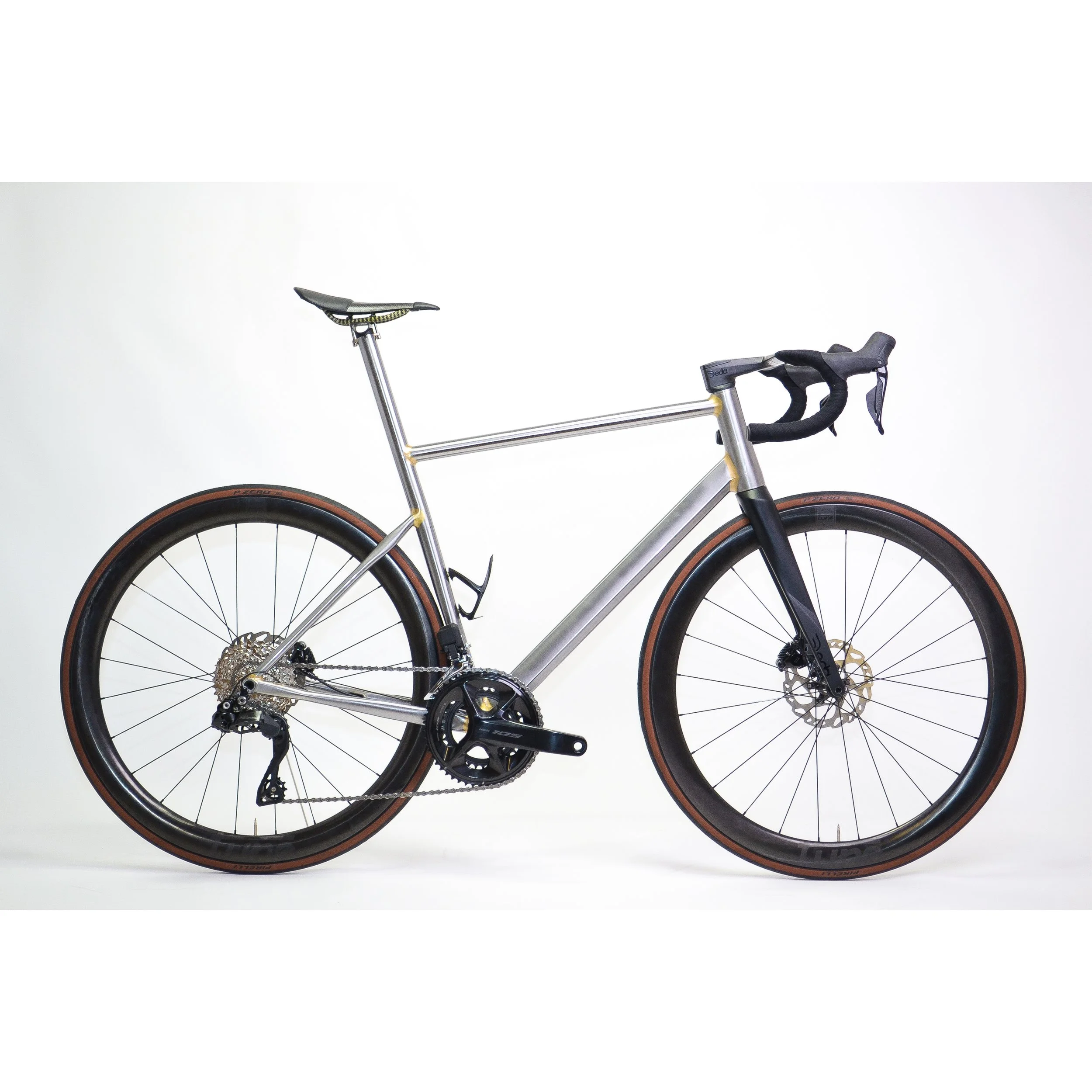

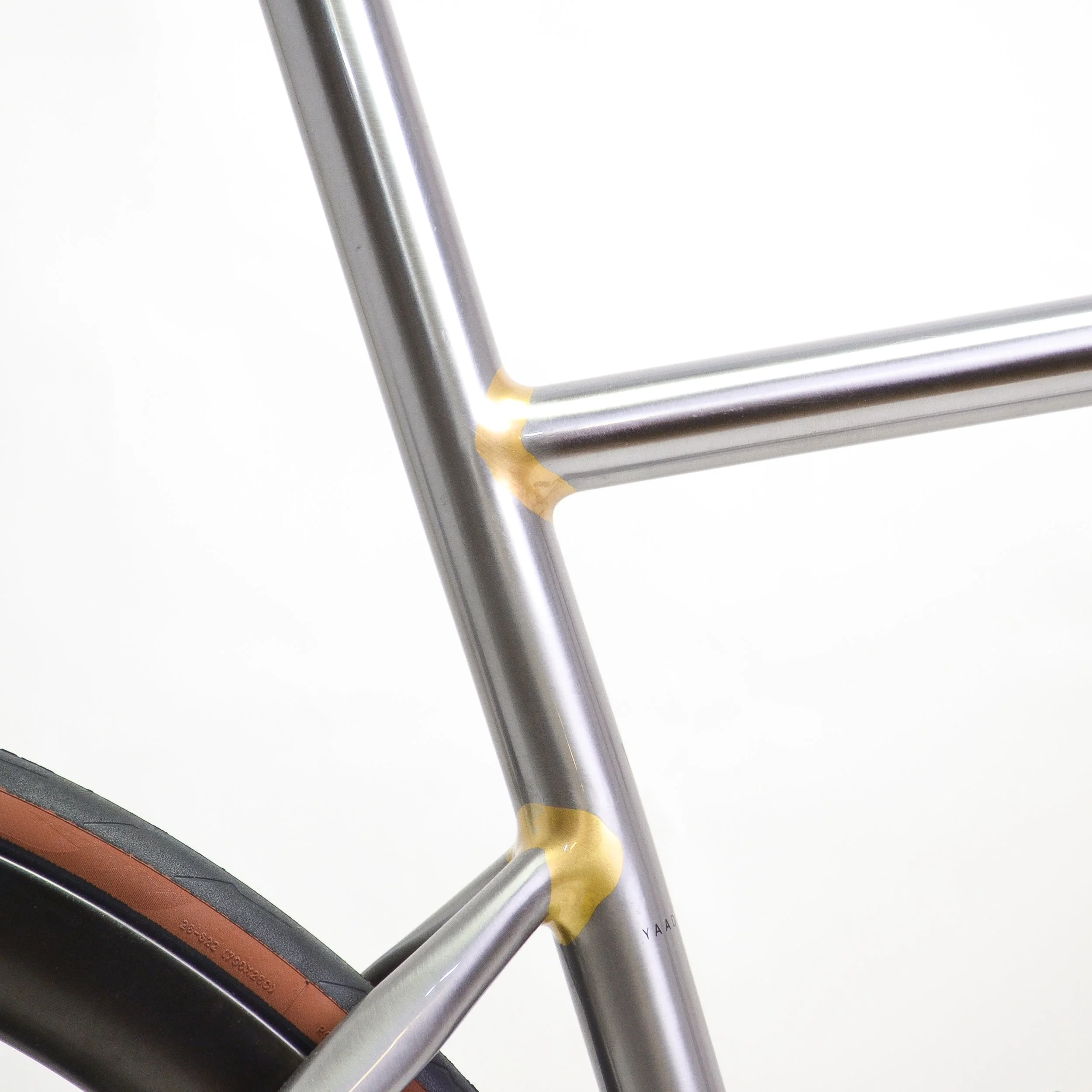

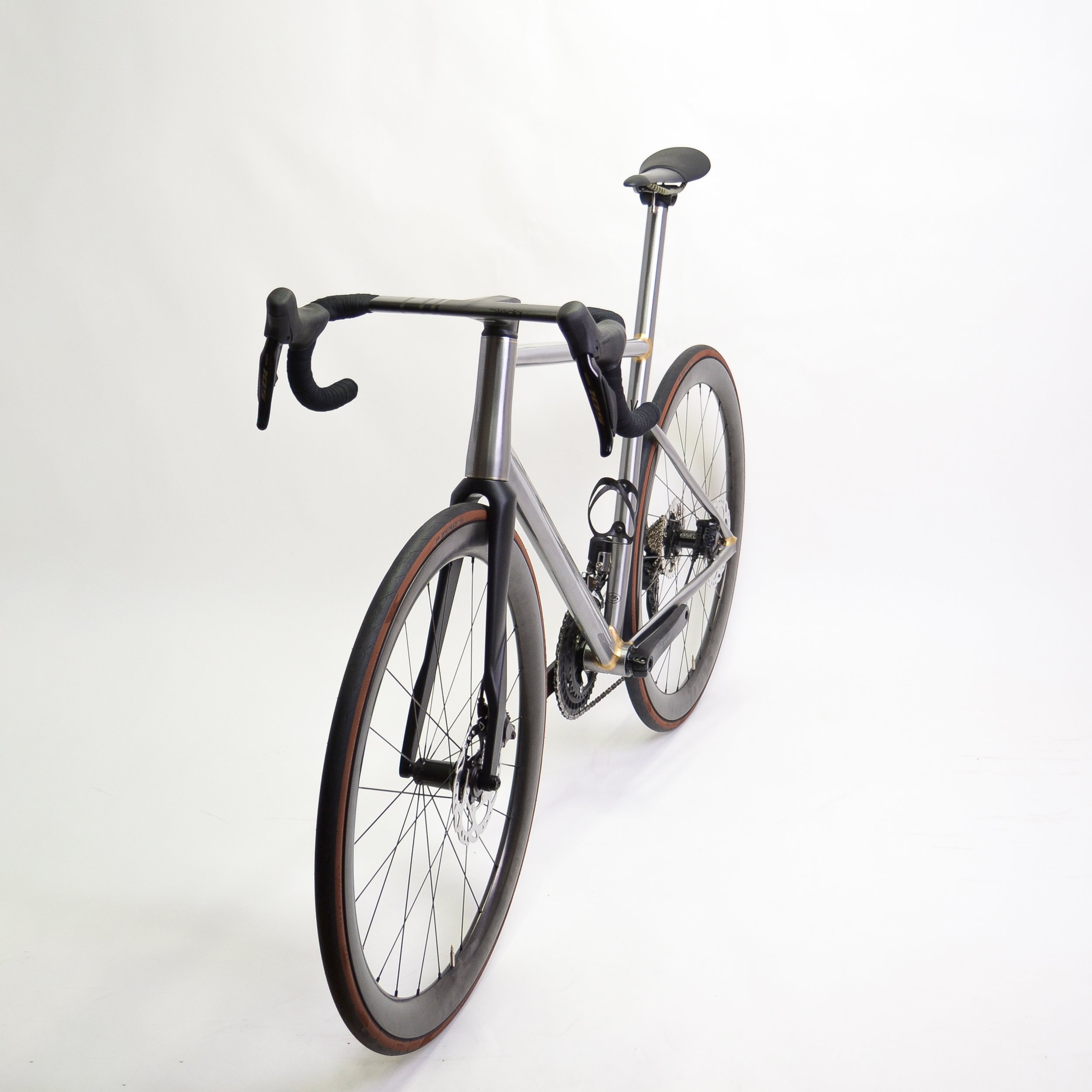

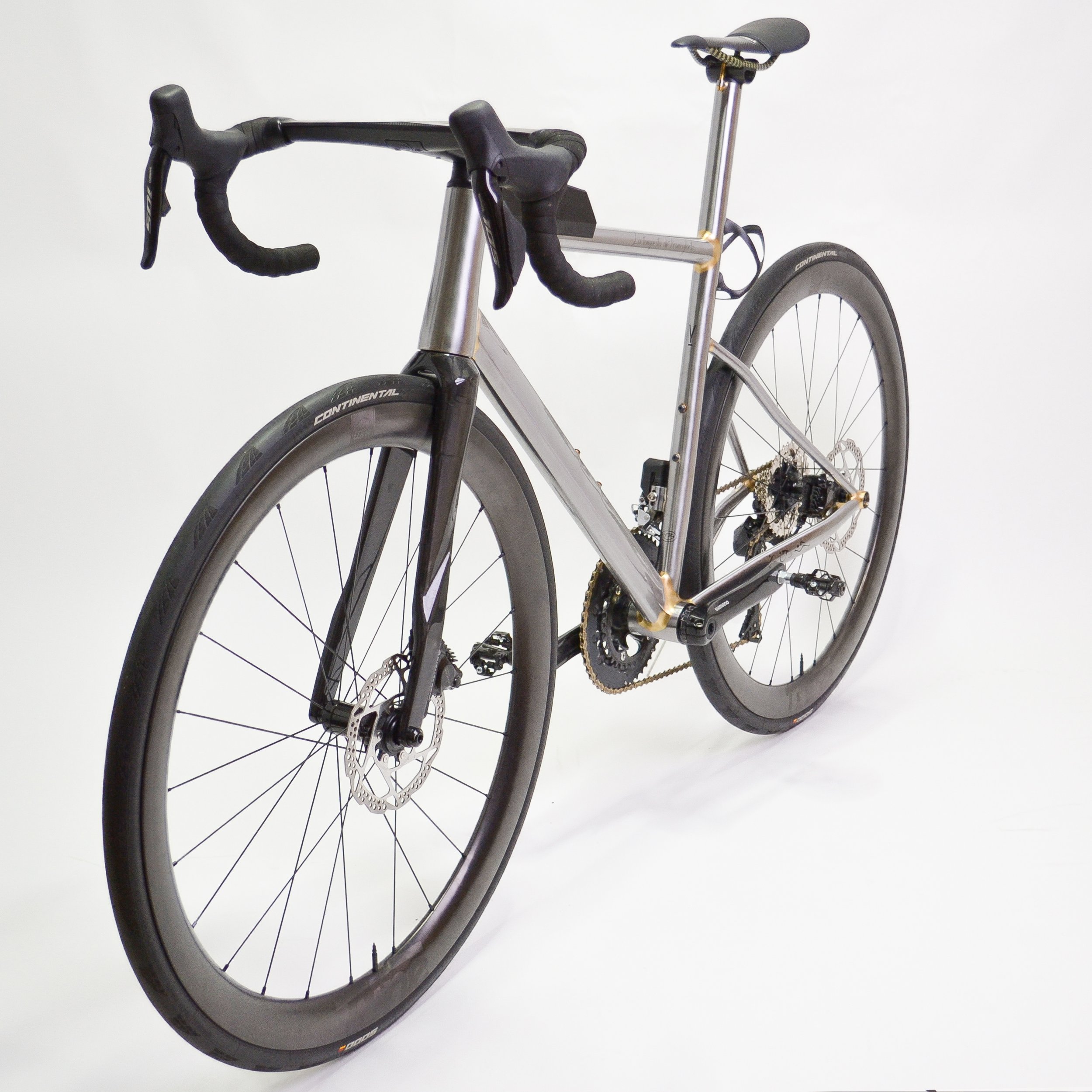

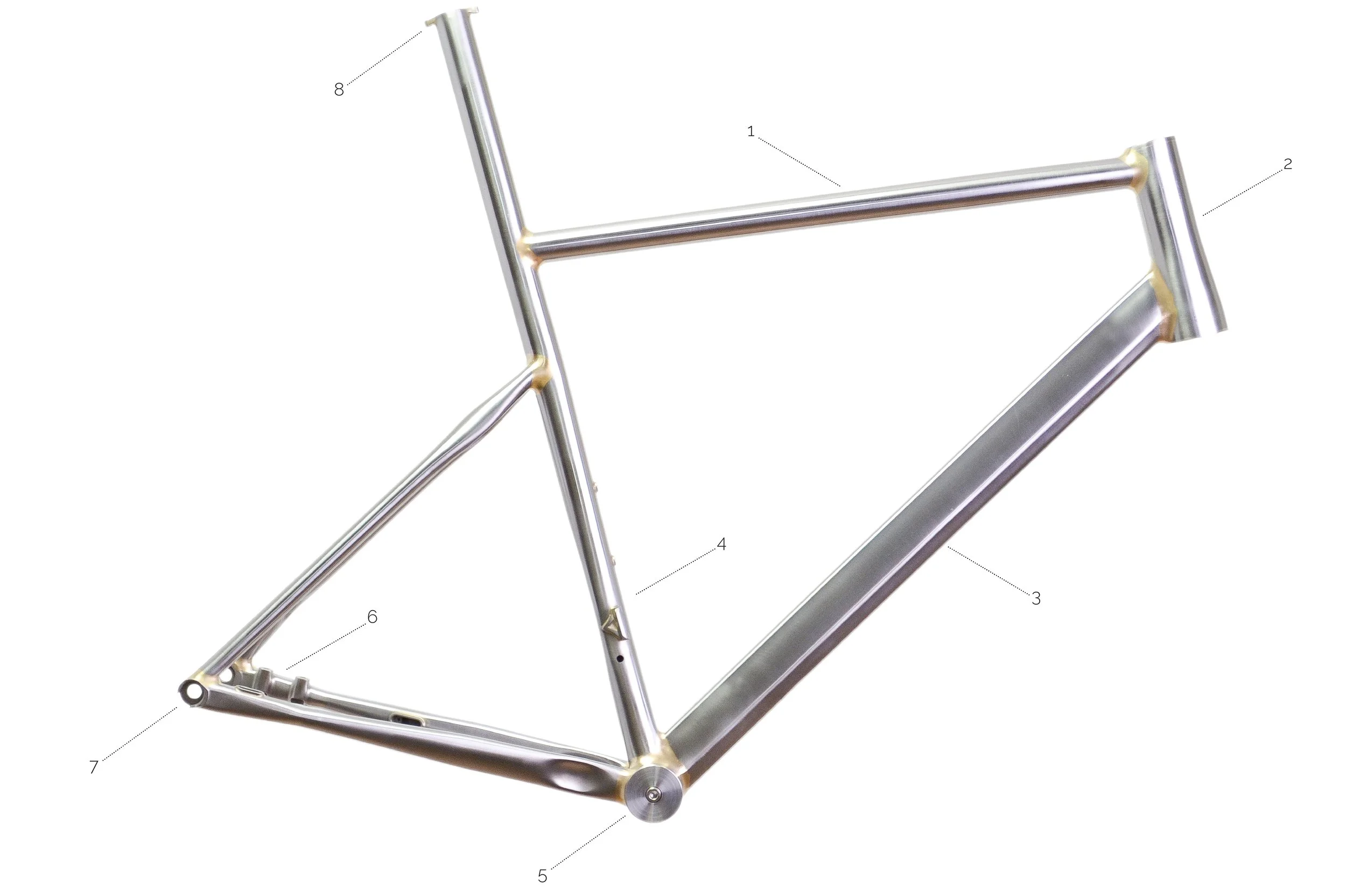

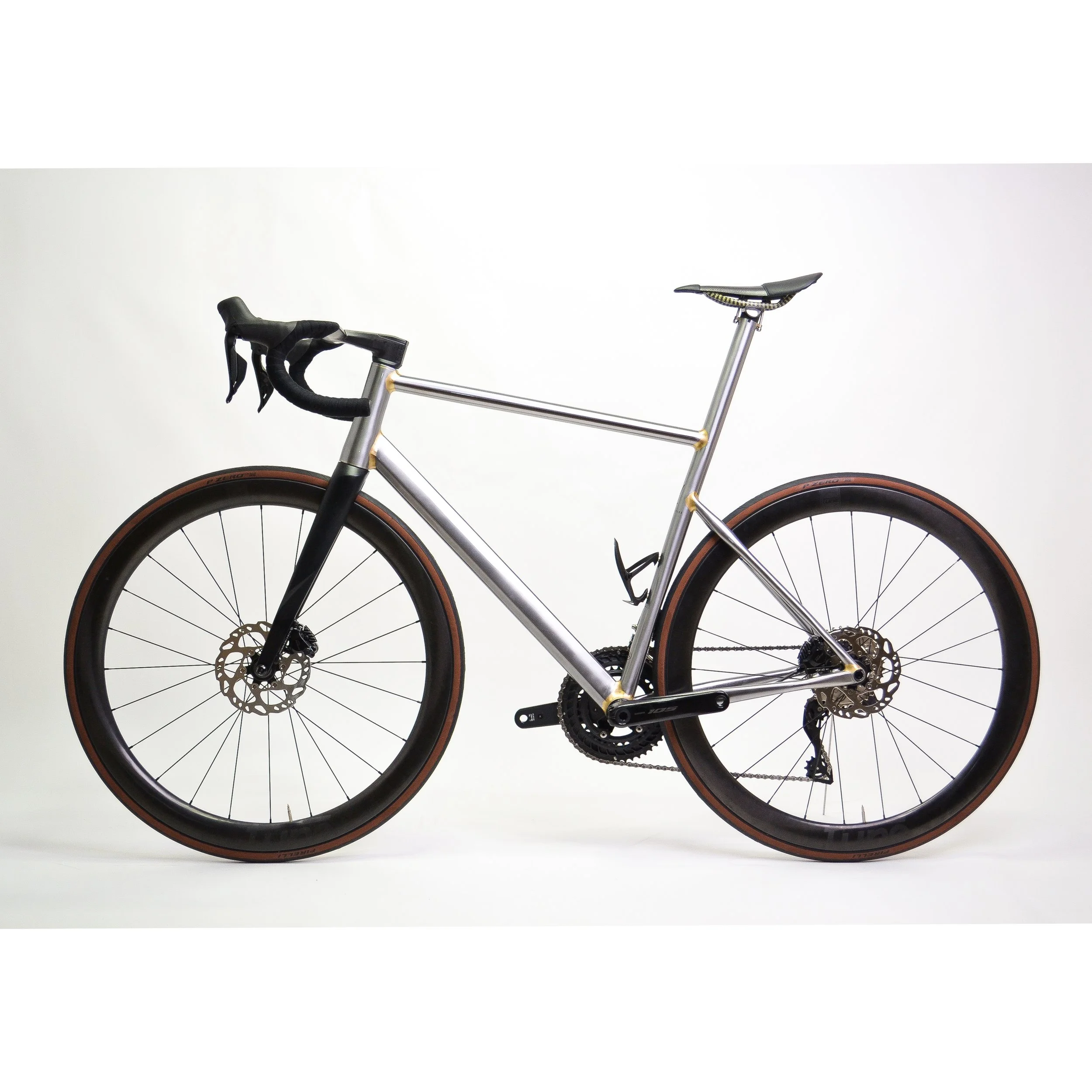

1. Individual geometry employing fillet brazed and TIG welded steel frame construction out of lightweight Columbus Spirit HSS tubing

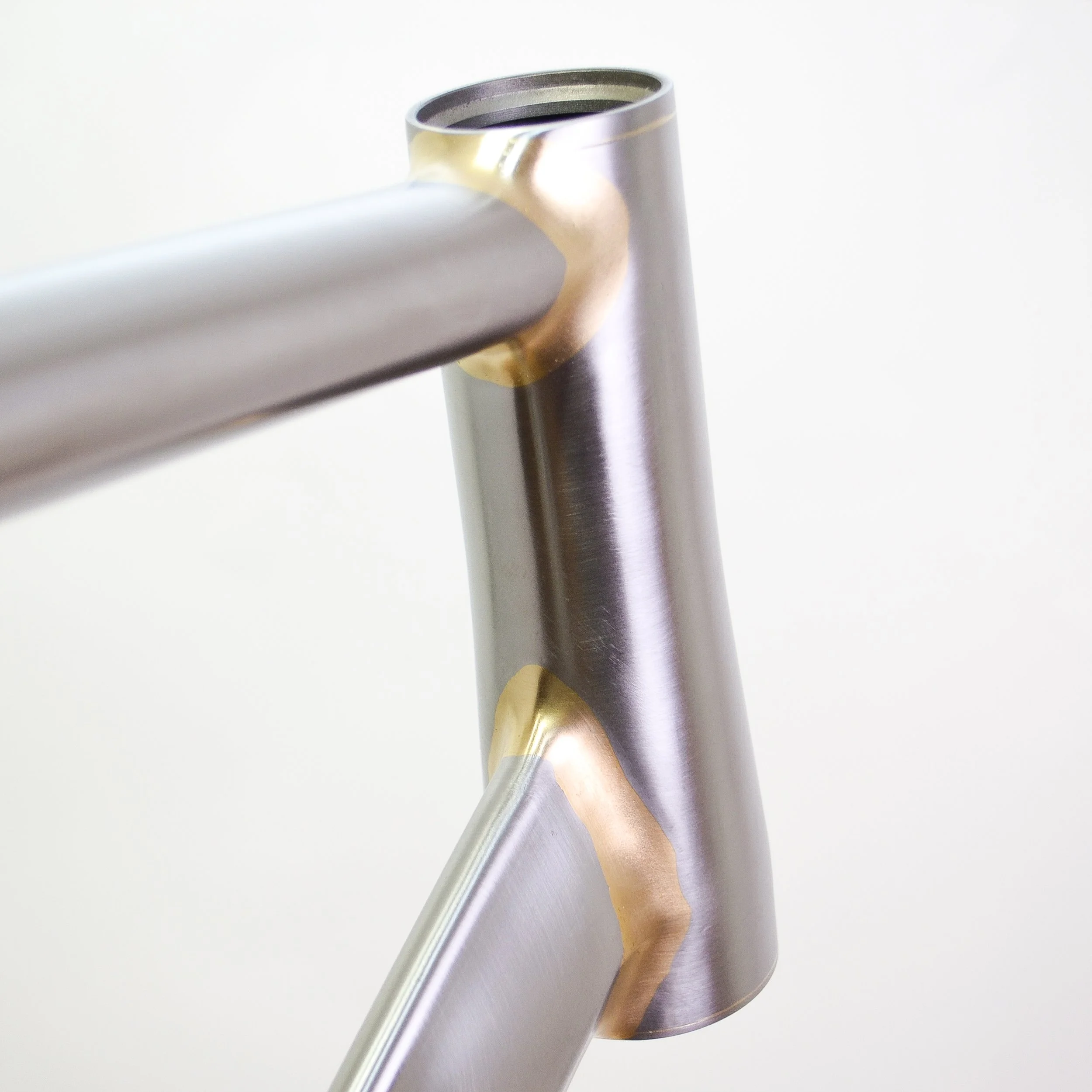

2. Integrated Columbus Headset system. Full integrated cable management with the help of the deddaciai DCR system.

3. Aero shaped Columbus Spirit Downtube

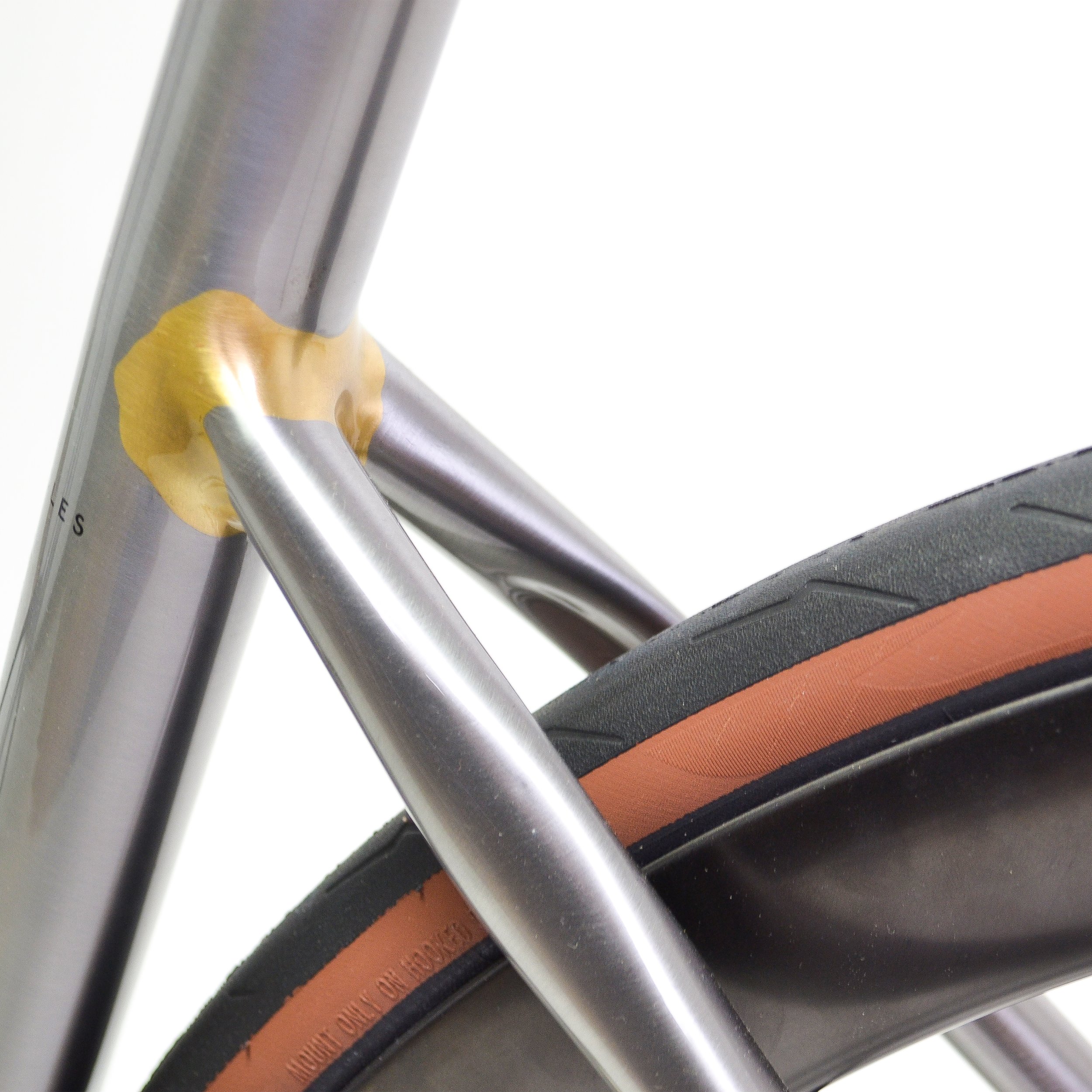

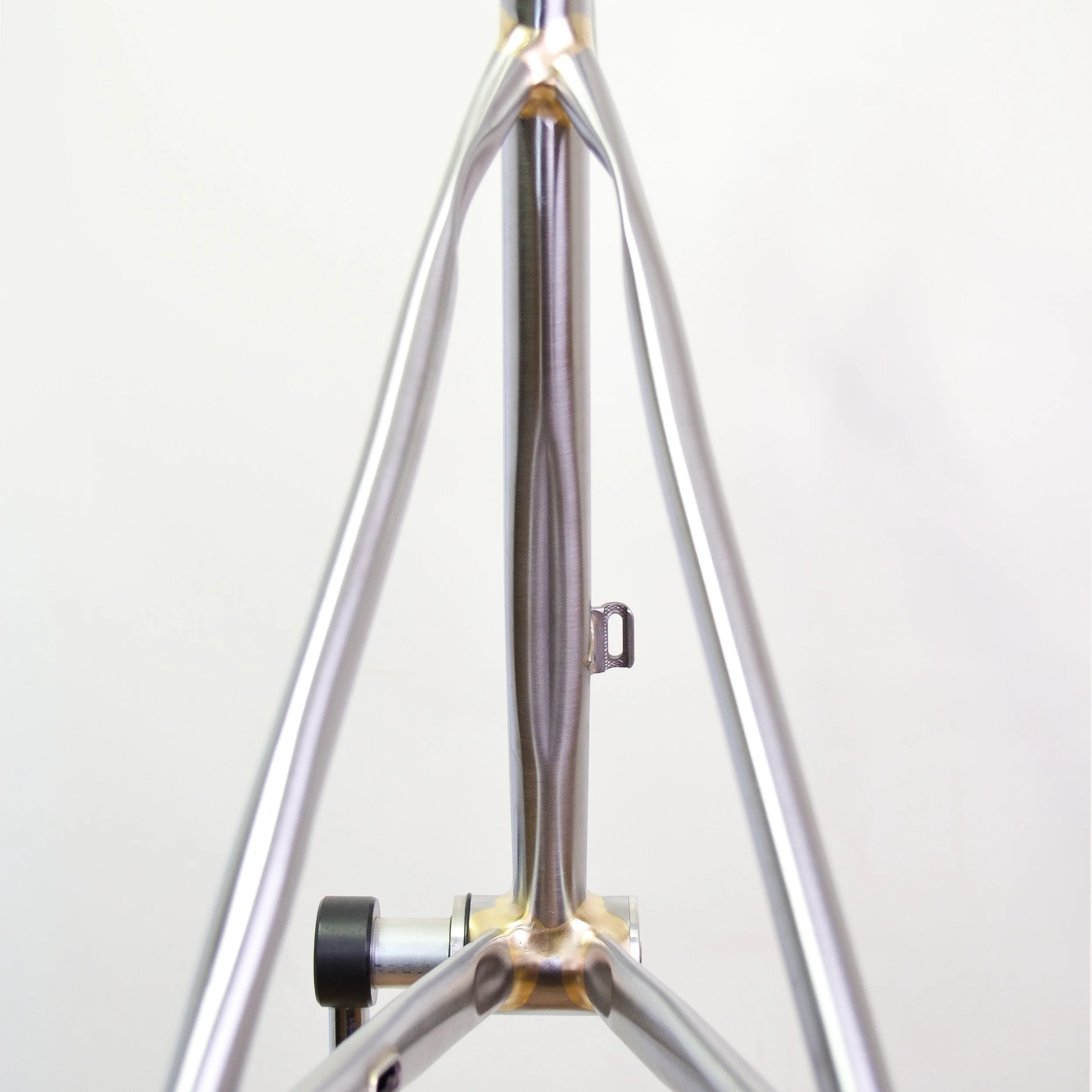

4. indentation in the seat tube for clearance of the rear wheel

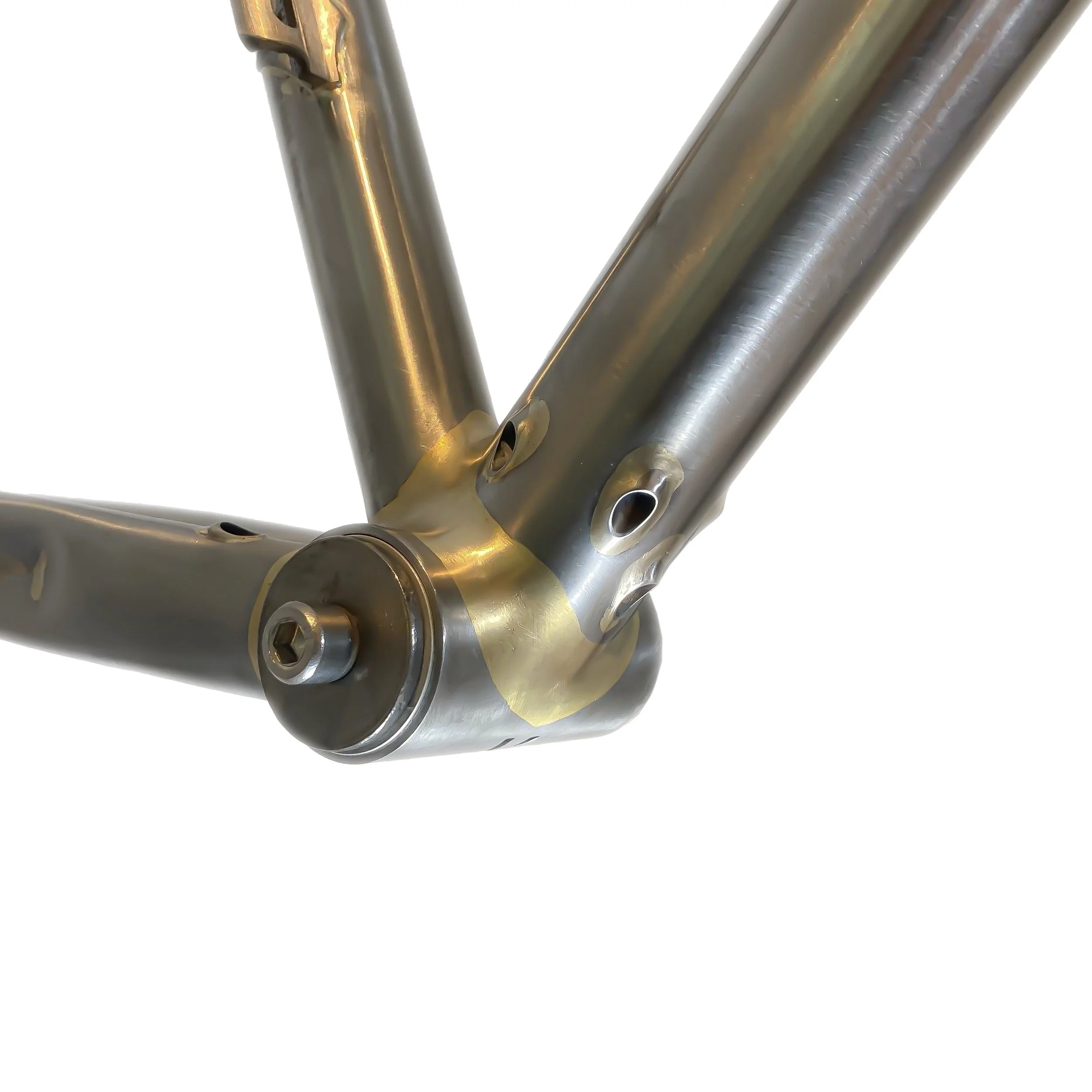

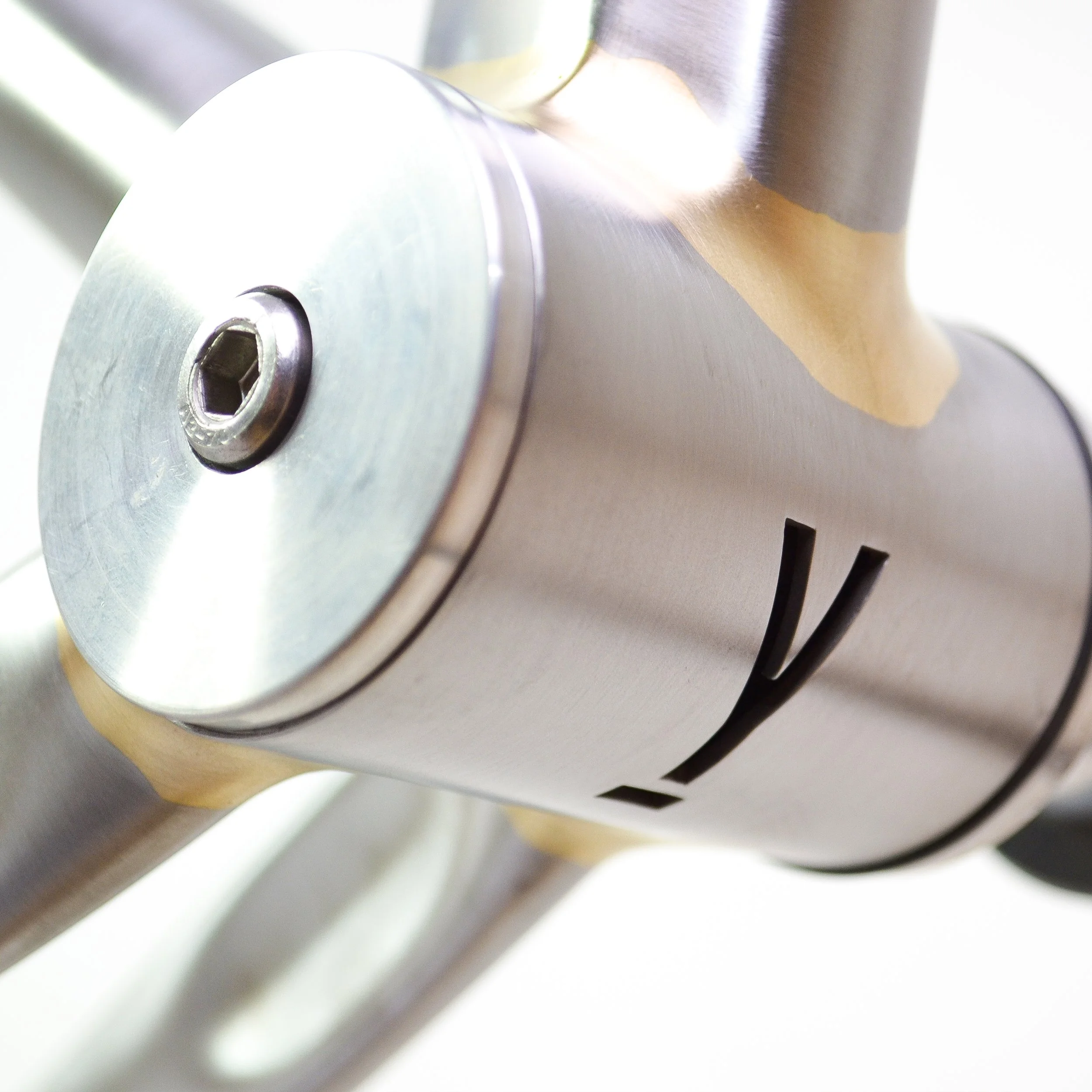

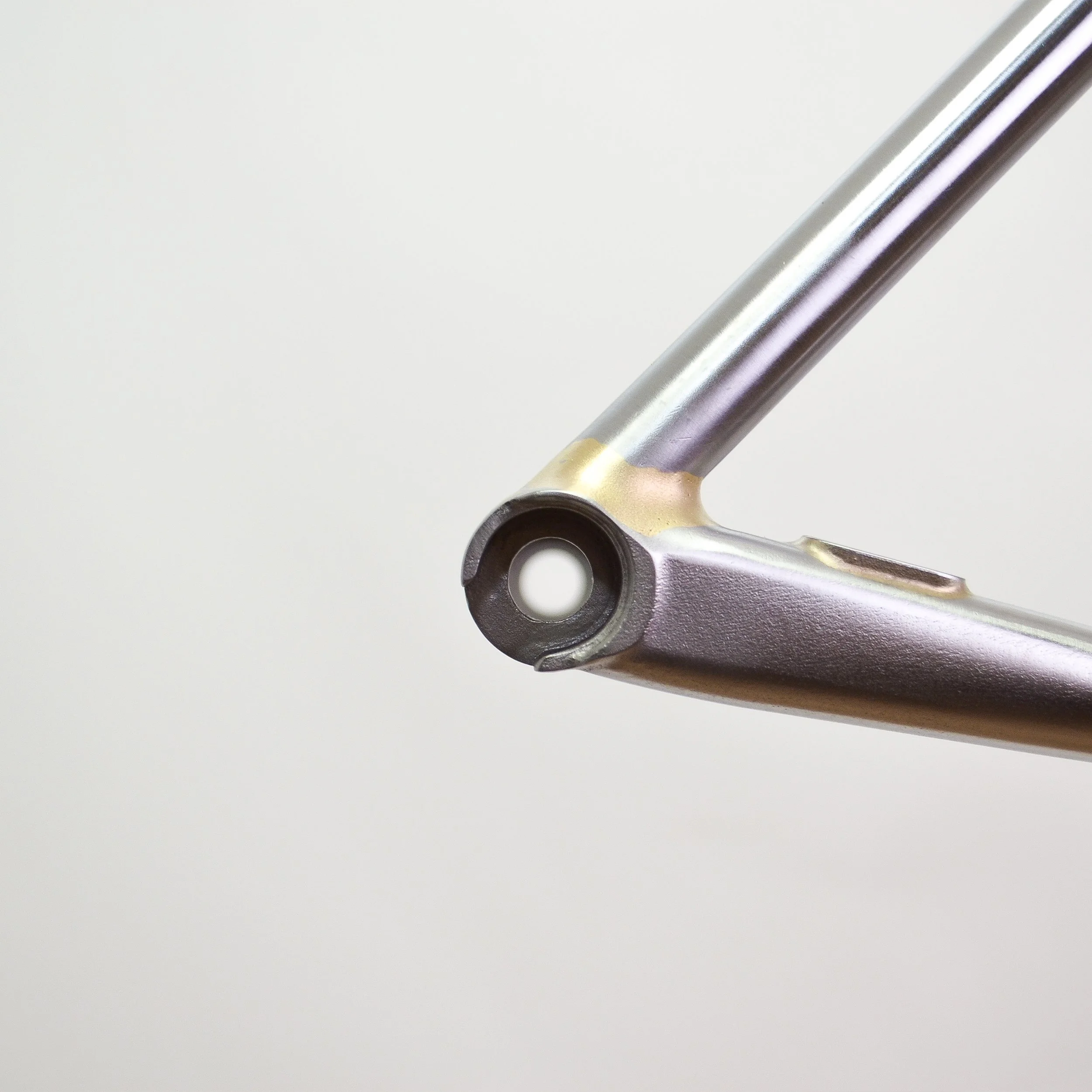

5. T47 bottom bracket shell which in-houses the integrated cables with fine logo engravement

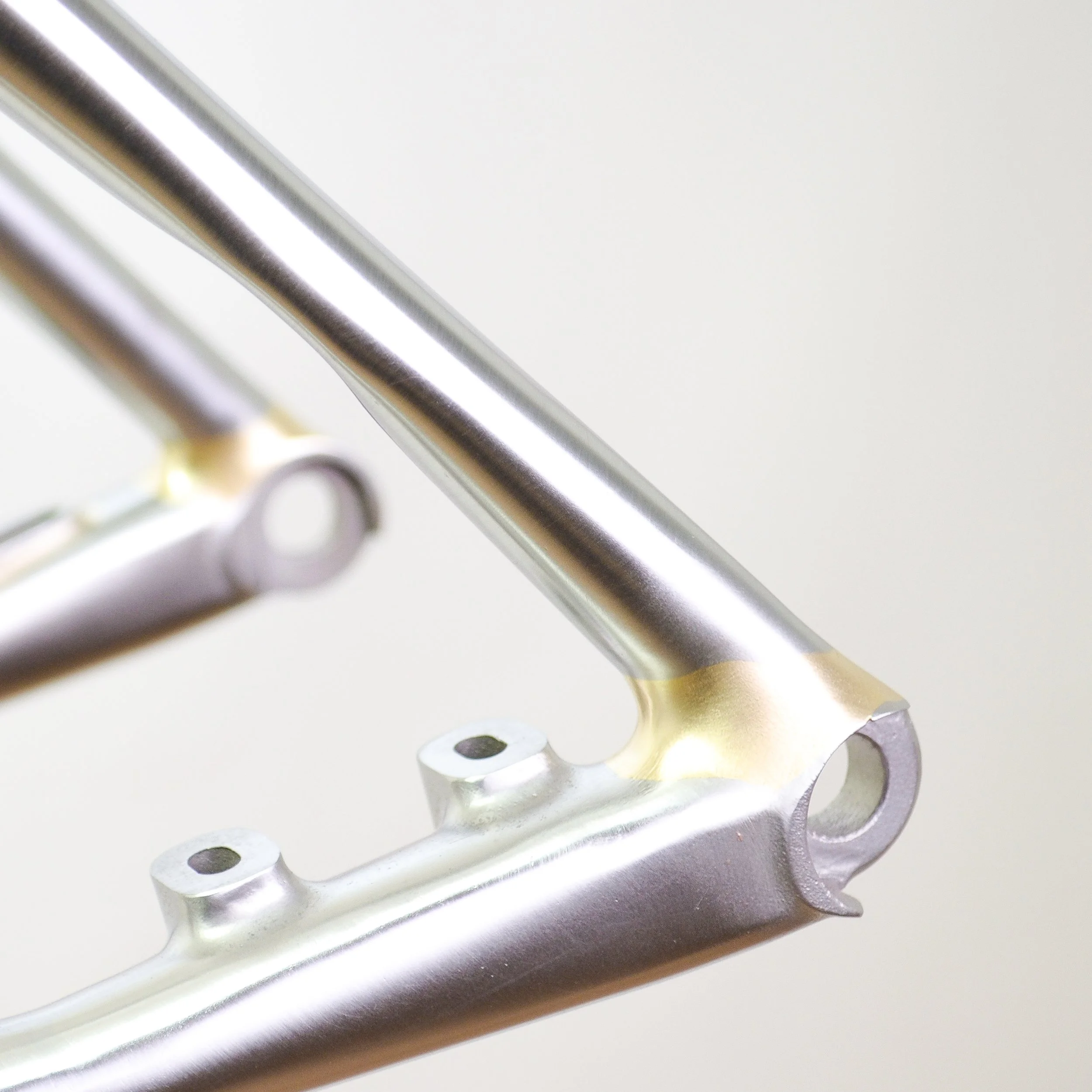

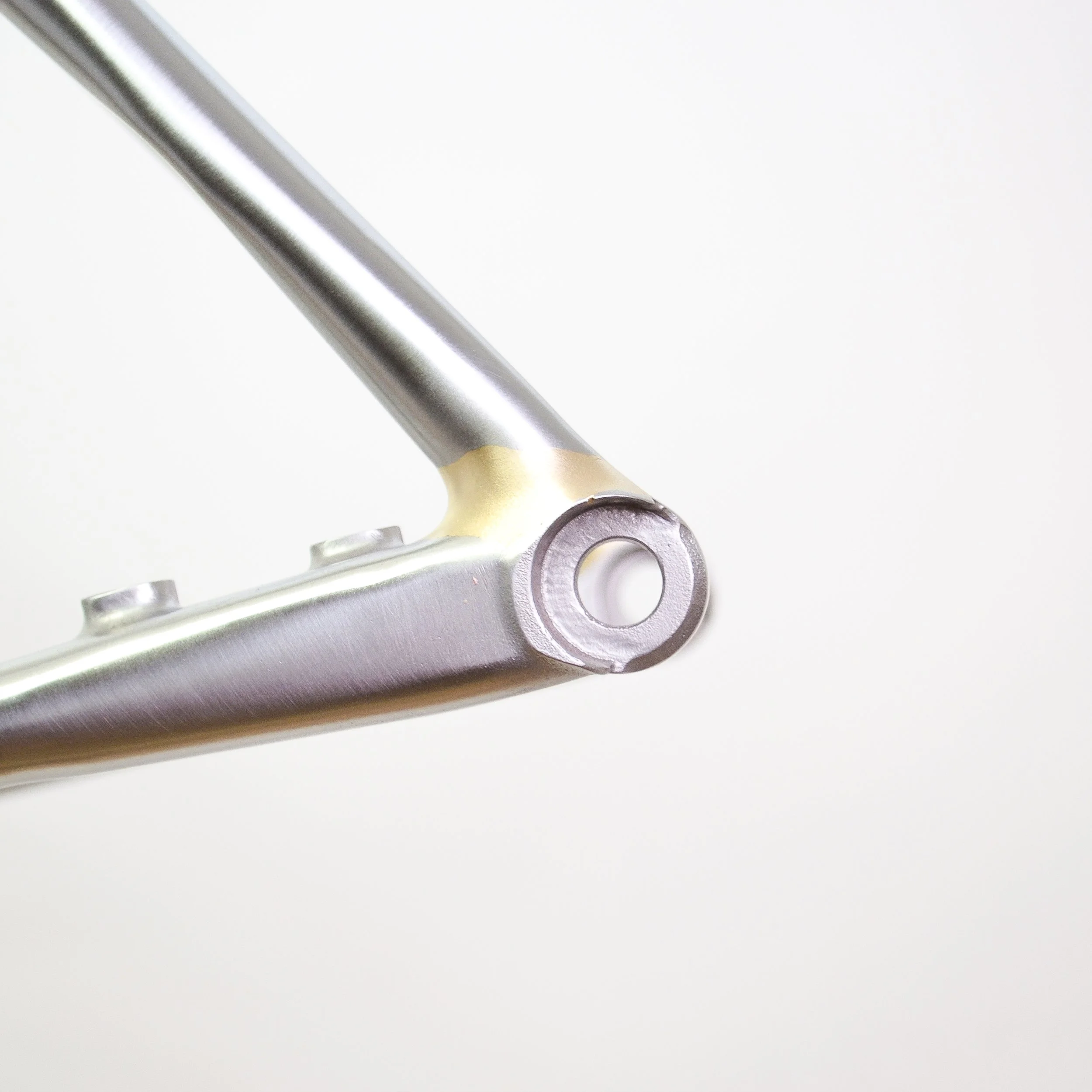

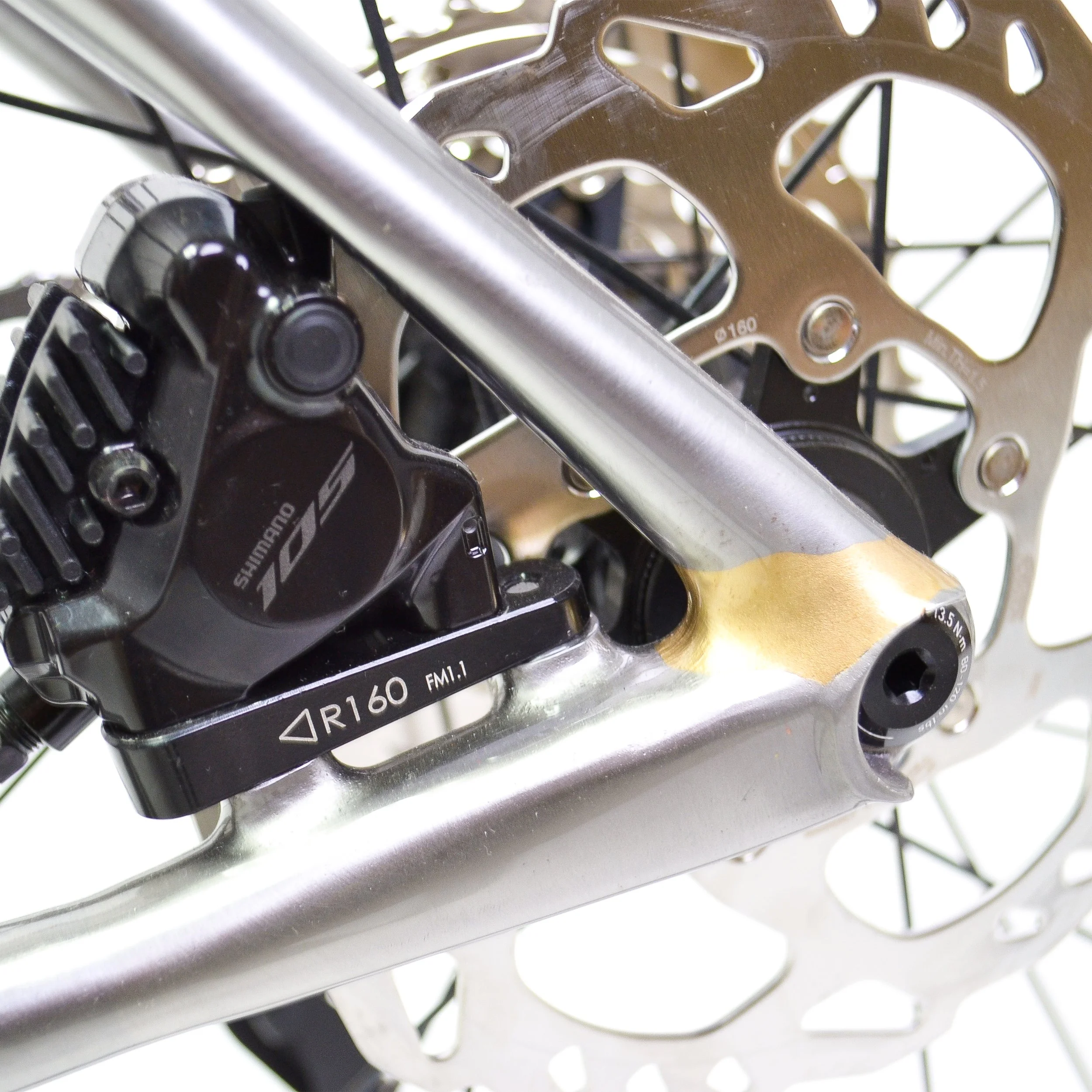

6. 3D printed Dropouts with integrated flatmount disc brake bosses

7. snap ring hanger system

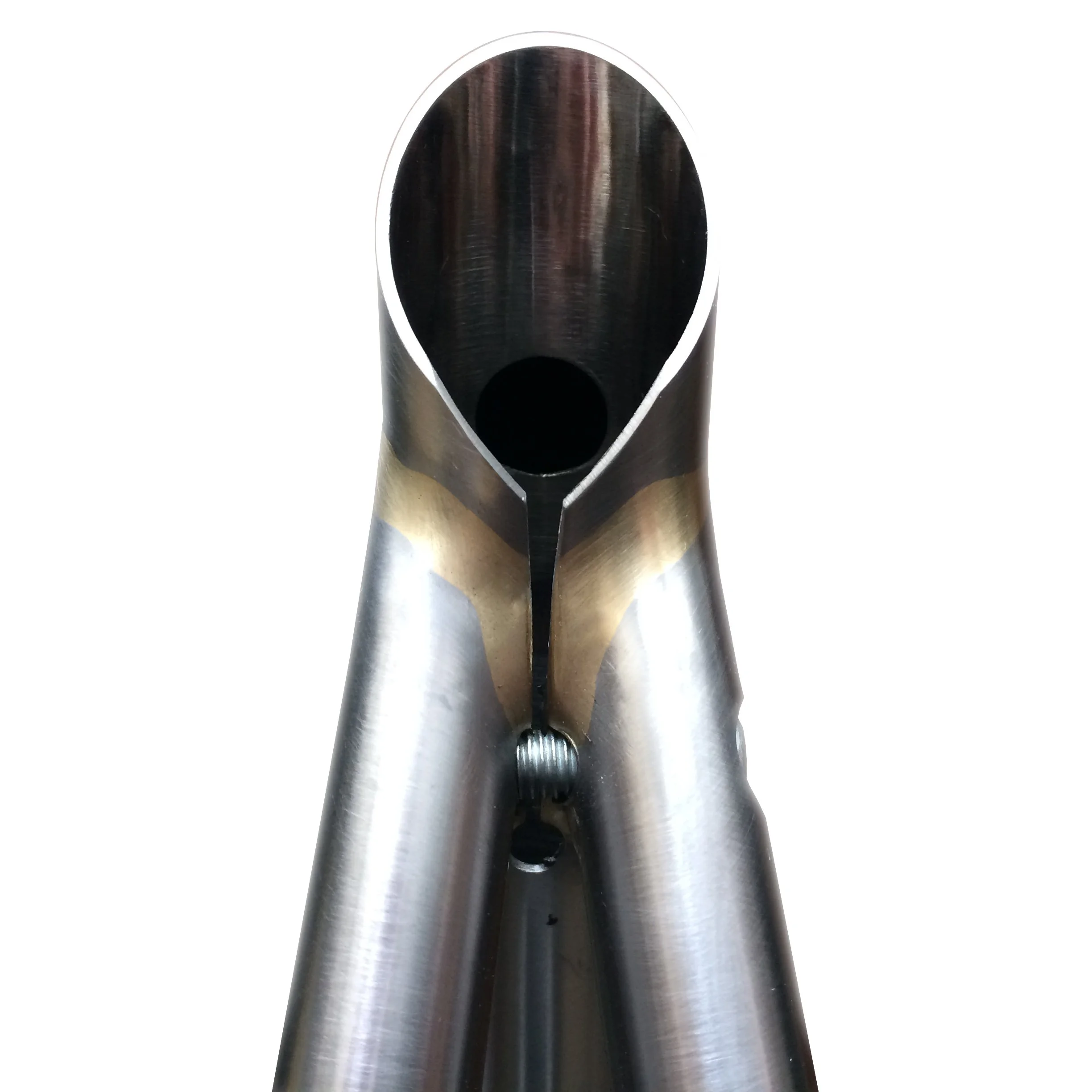

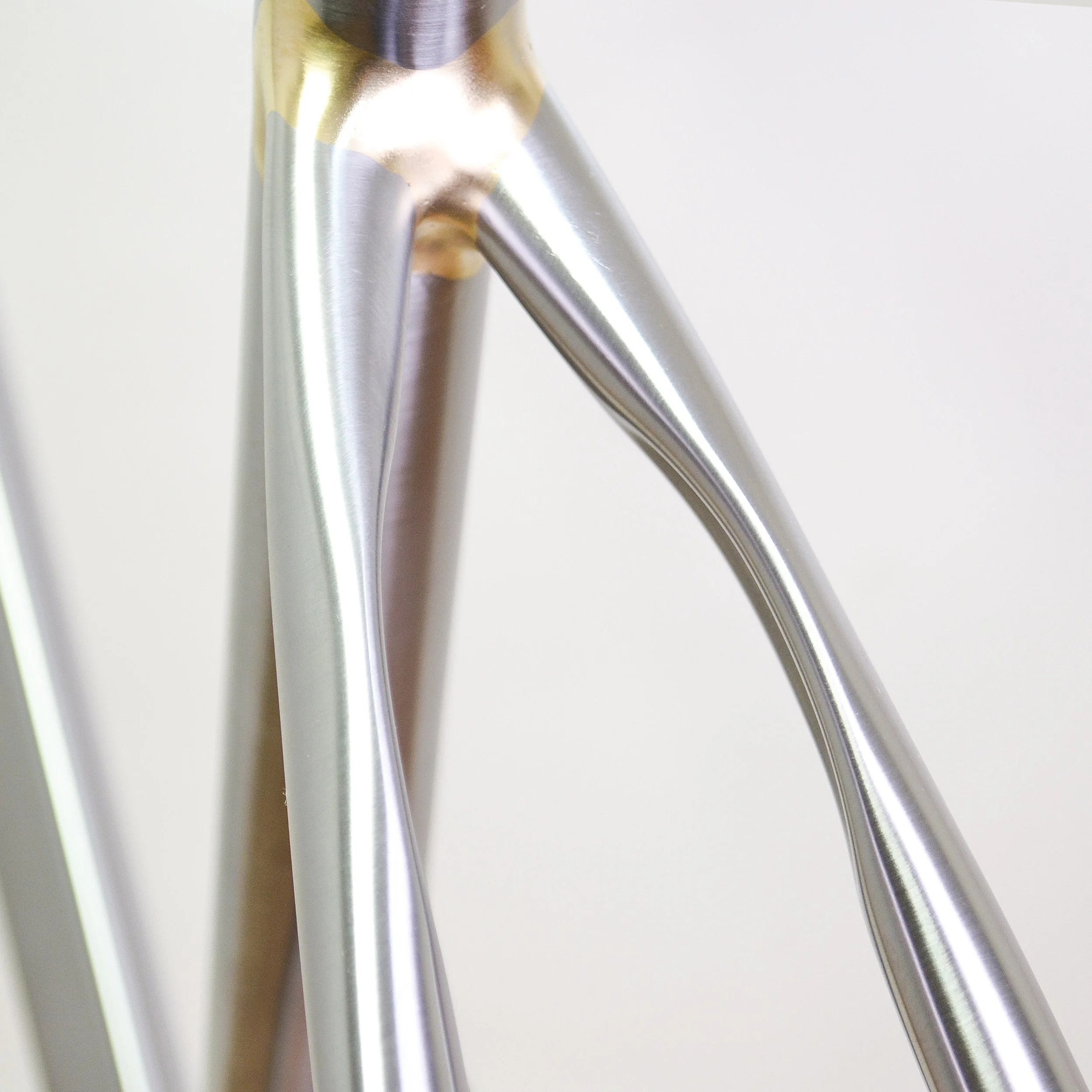

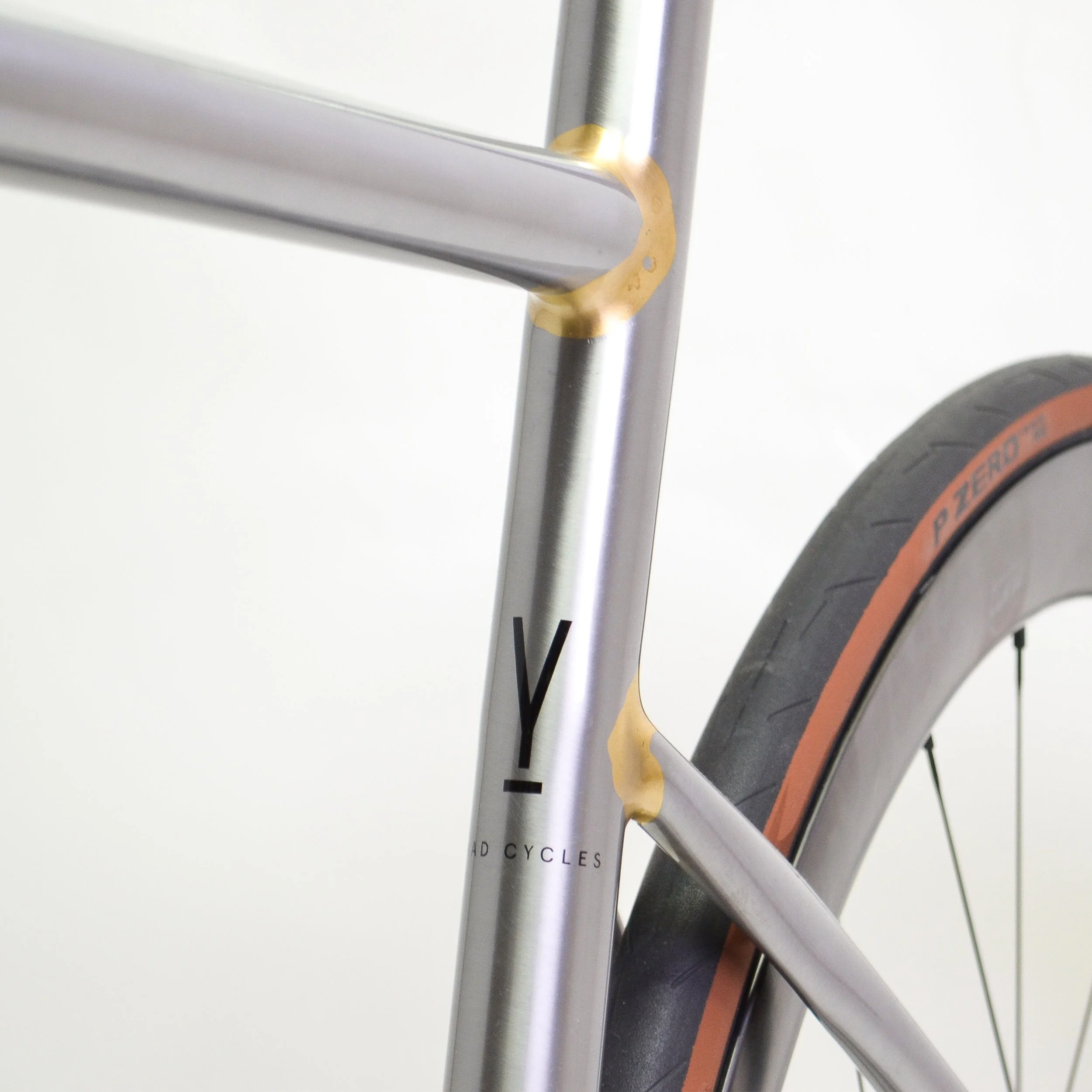

8. Gaining more stiffness with a special long butted seat tube with the most minimalistic integrated saddle fixation.

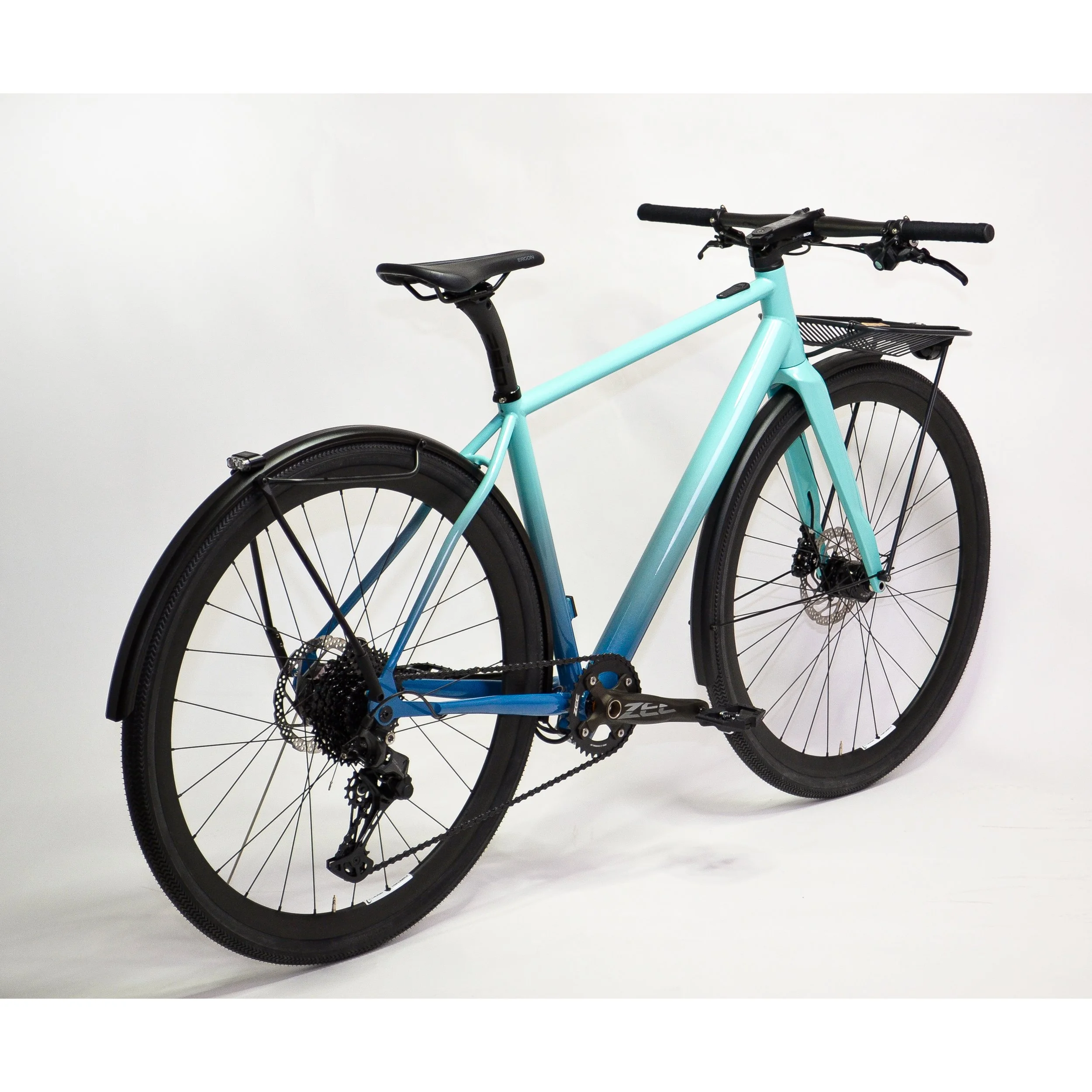

1. Individual geometry employing fillet brazed and TIG welded steel frame construction out of lightweight Reynolds tubing

2. special boss for the IWOC control unit

   for the mahle X20 system

3. Integrated Columbus Headset system. Full integrated cable management with the help of the deddaciai DCR system.

4. With 56mm sections along the downtube to in-house the battery for the Mahle x20 system.

5. Special designed DT cap with fine Logo integration.

6. Special Rey-Drive Dropouts for the Mahle X20 system.

7. Full cable integration in the chainstays

8. Boss for the Loading unit for the battery of the Mahle X20 system

1. Individual geometry employing fillet brazed steel frame construction out of lightweight Columbus SPIRIT tubes. With special megatube sections along the downtube. Finished with a shiny clearcoat paintshop by schoenpaintworks in Frankfurt.

2. Integrated Columbus Headset system.

3. Full integrated cable management with the help of the deddaciai DCR system.

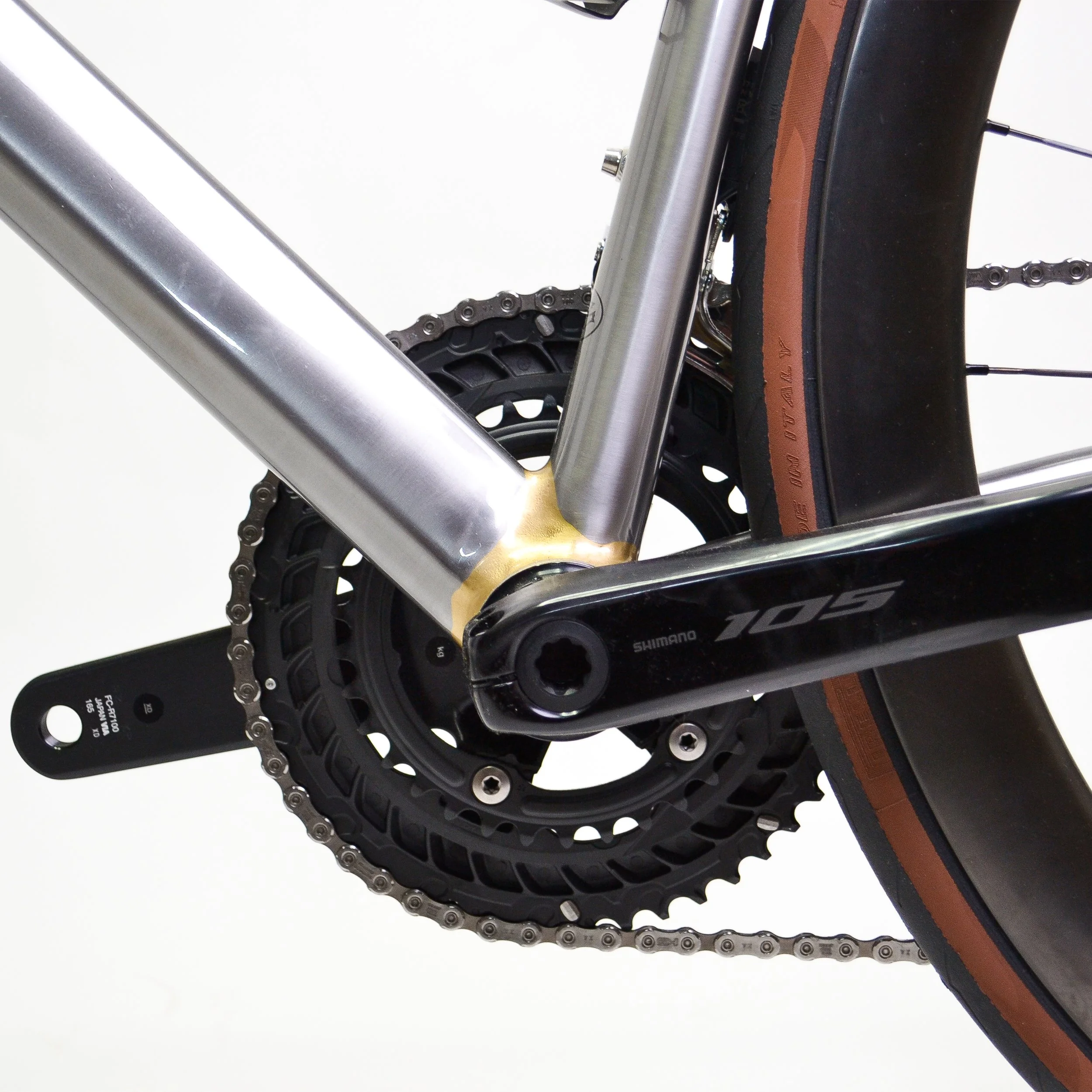

4. T47 bottom bracket shell which in-houses the integrated cables with fine logo engravement

5. Syntace X12 drop out system

6. Rear flat mount bosses

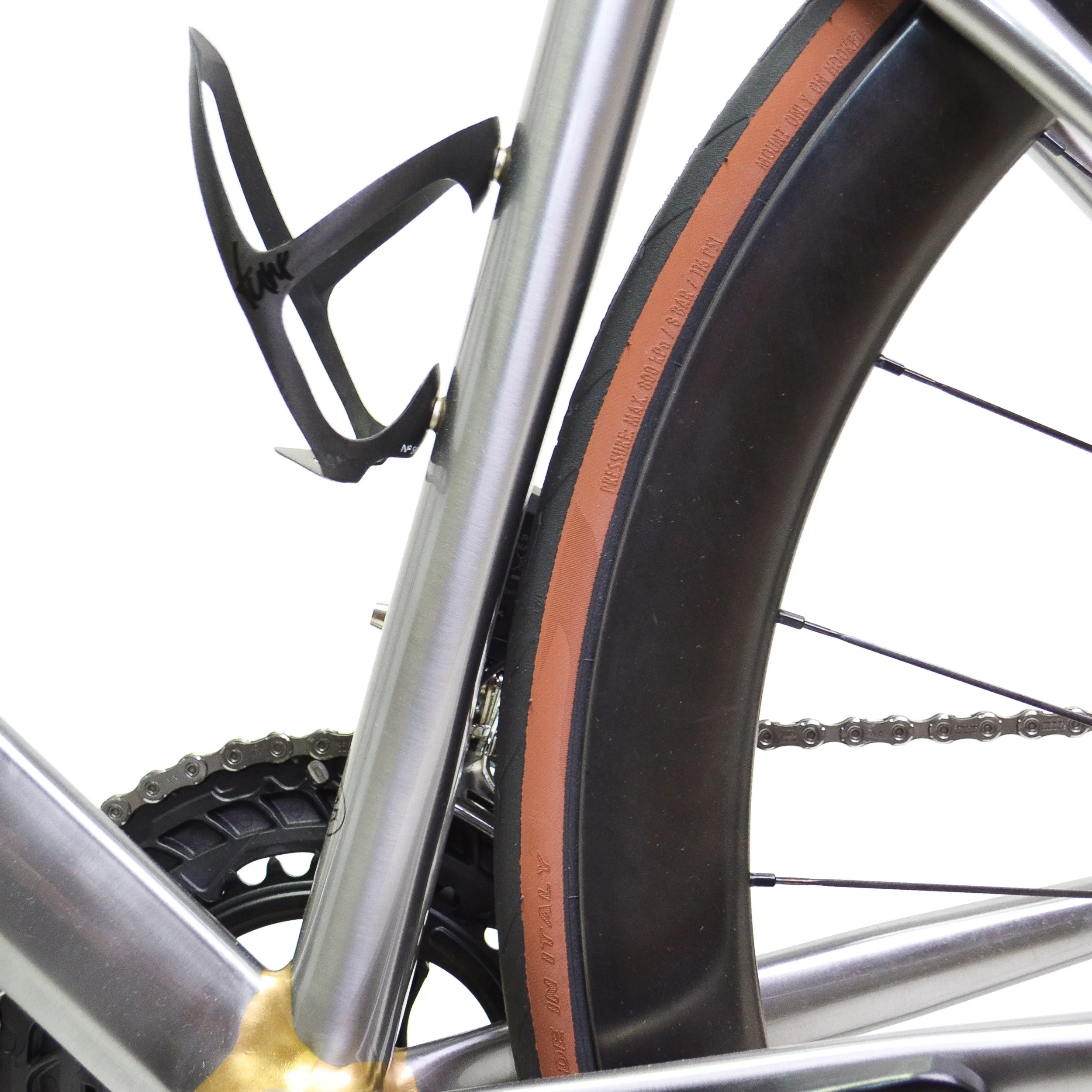

7. indentation in the seat tube for clearance of the rear wheel

8. Gaining more stiffness with a special long butted seat tube with the most minimalistic integrated saddle fixation.

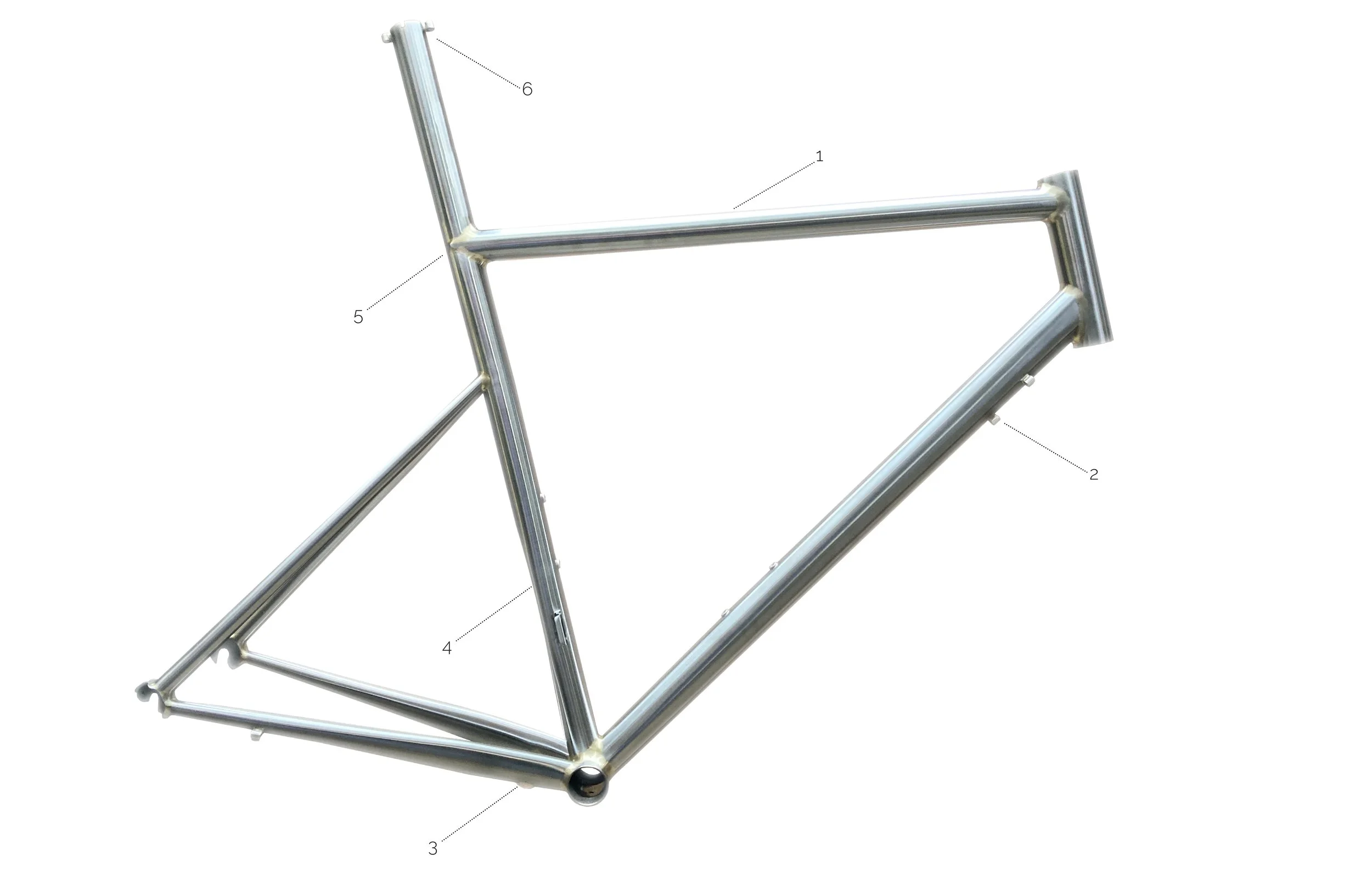

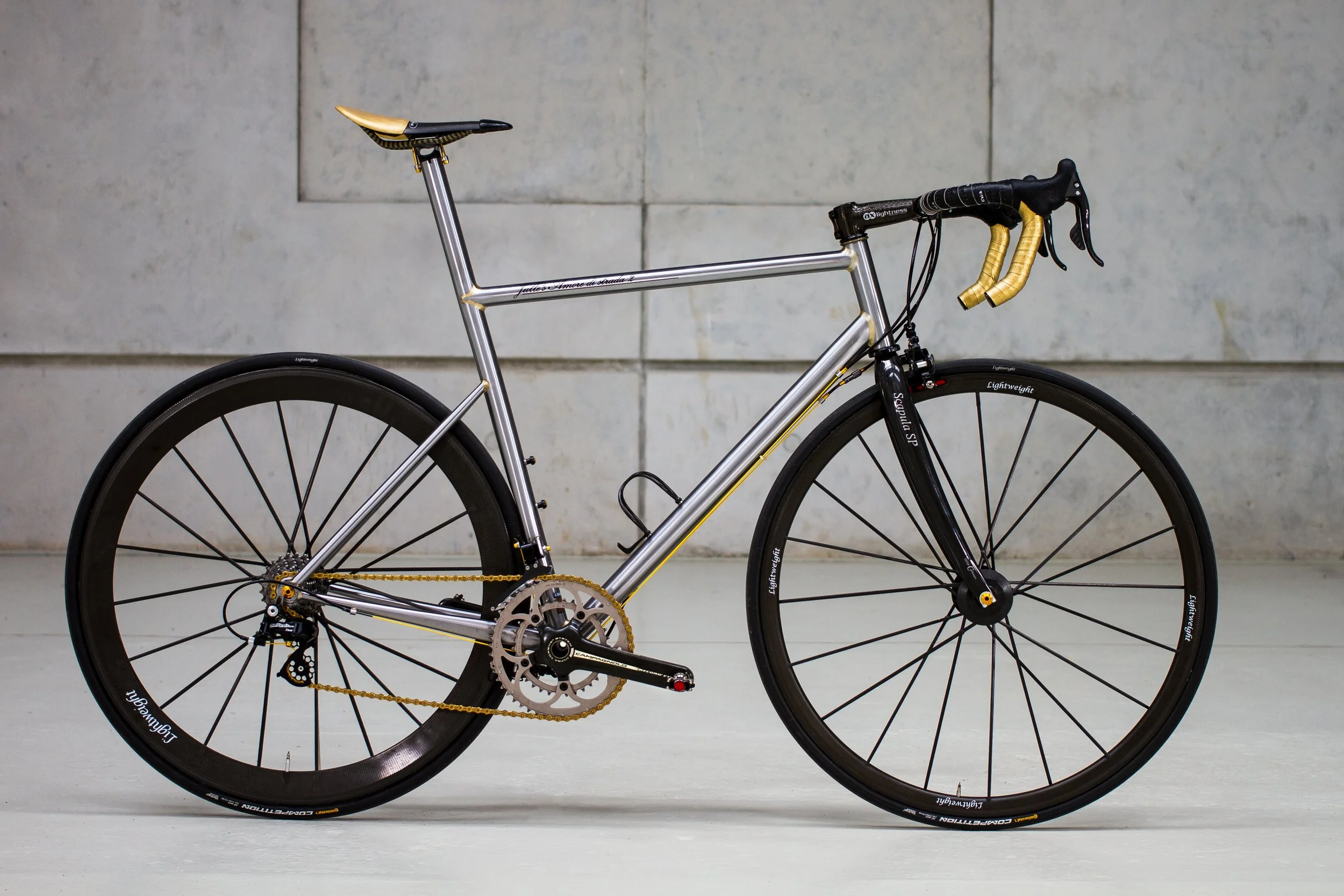

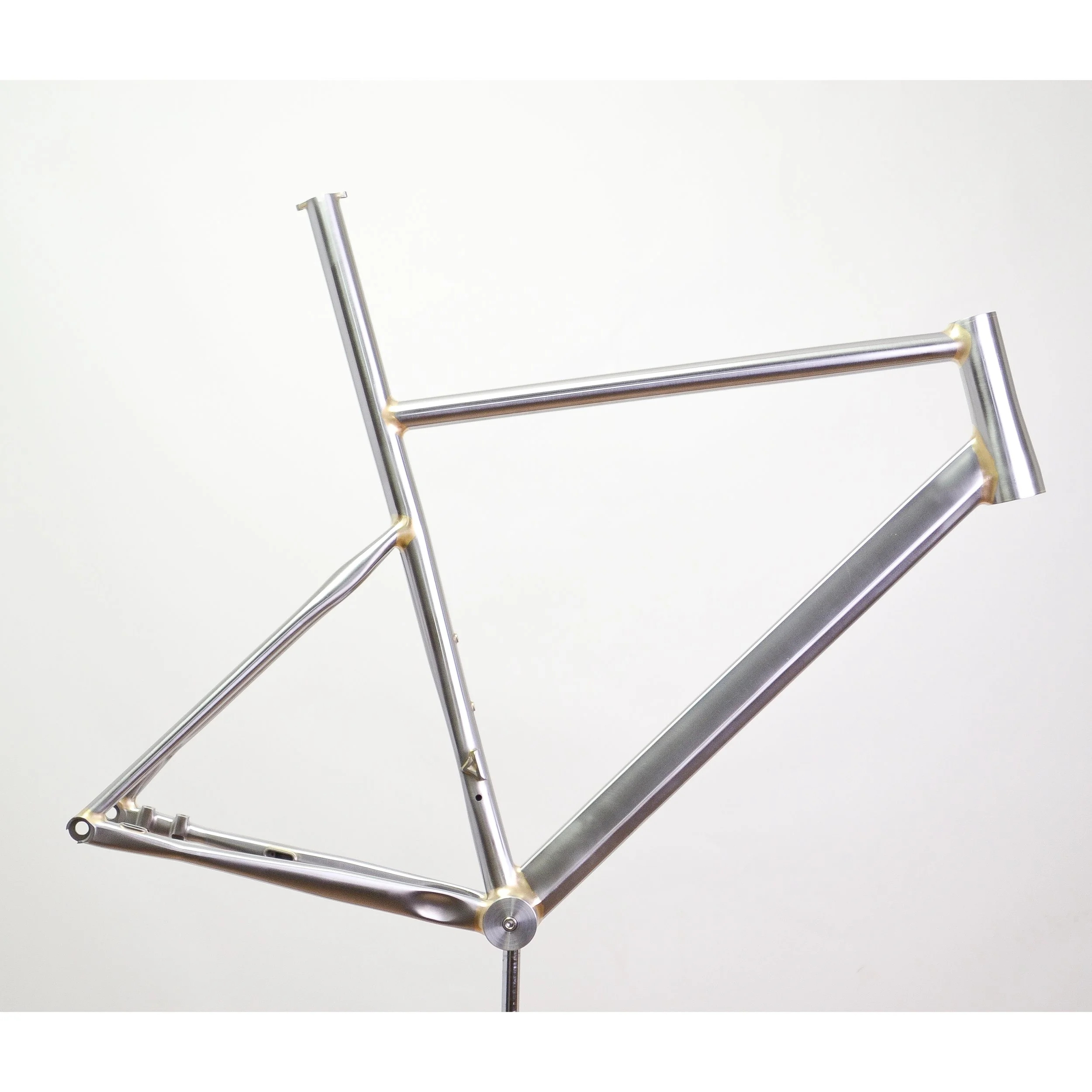

1. Individual geometry employing fillet brazed steel frame construction out of lightweight Columbus SPIRIT tubes. With special megatube sections along the top- and downtube. Finished with a lightweight clearcoat paintshop by velociao in Berlin.

2. In house manufactured stainless cable stops for external cable management.

3. In house produced direct mount bosses for rear brake system under the chainstays.

4. indentation in the seat tube for clearance of the rear wheel

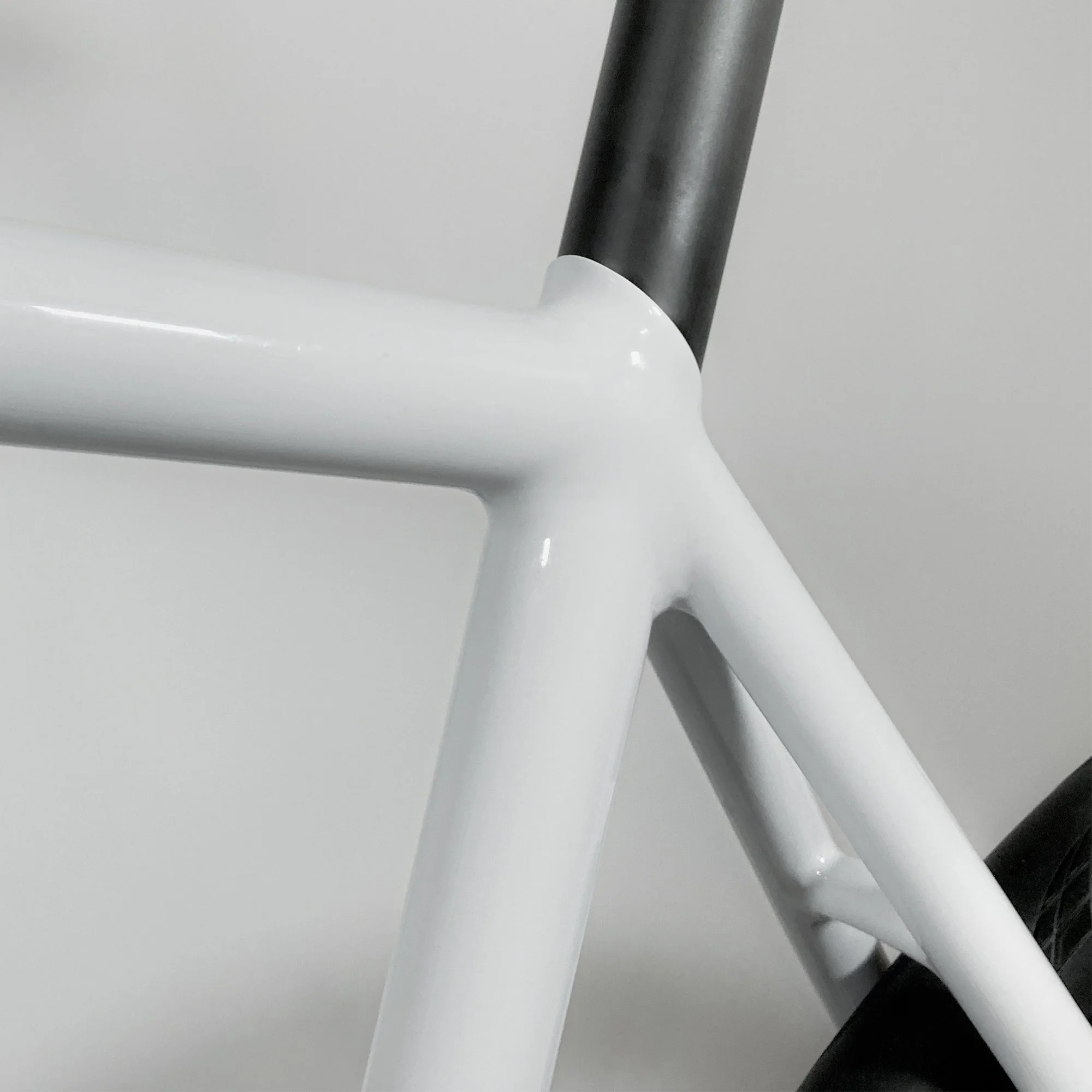

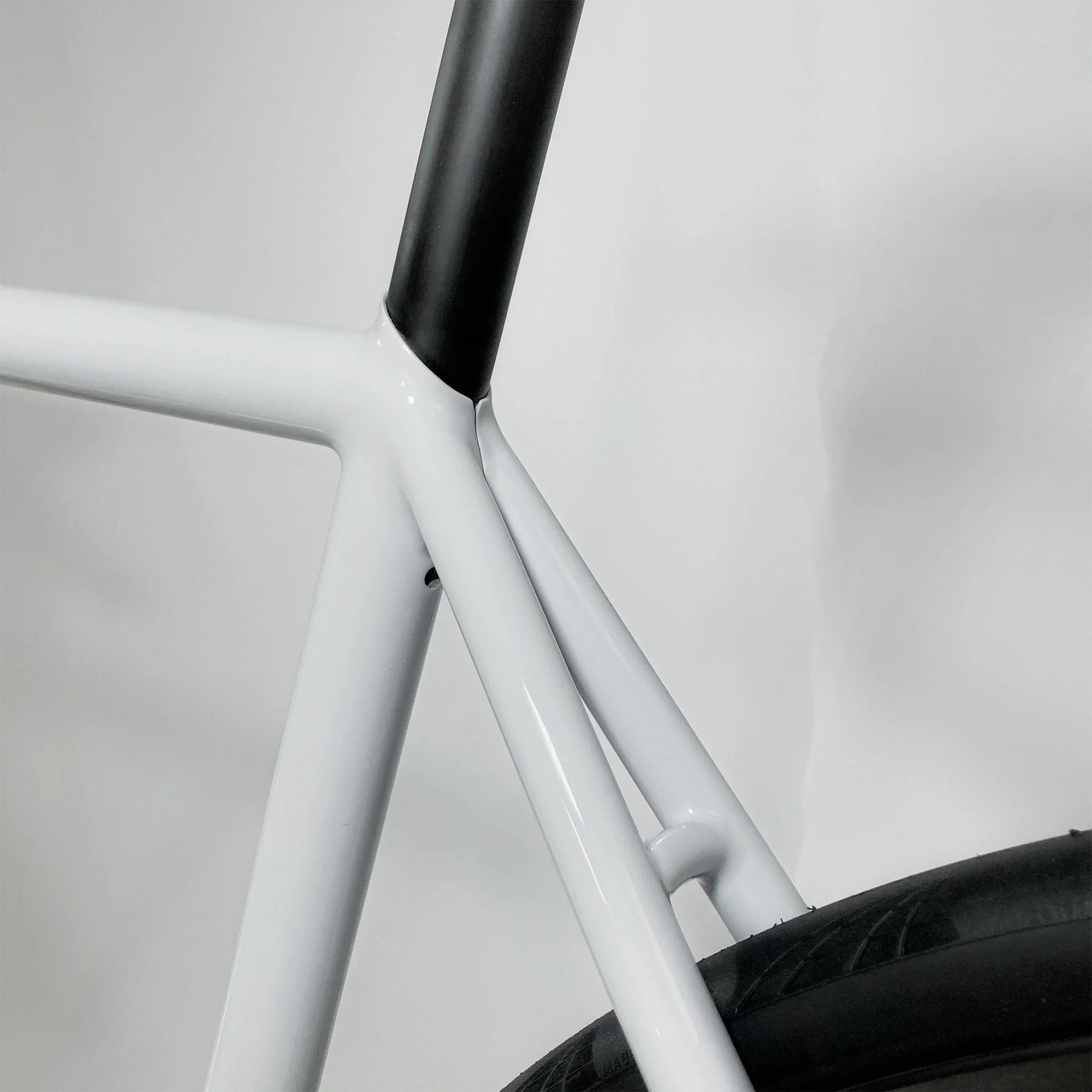

5. Gaining more stiffness with a special long butted seat mast with a extra encompassed joint to the top tube

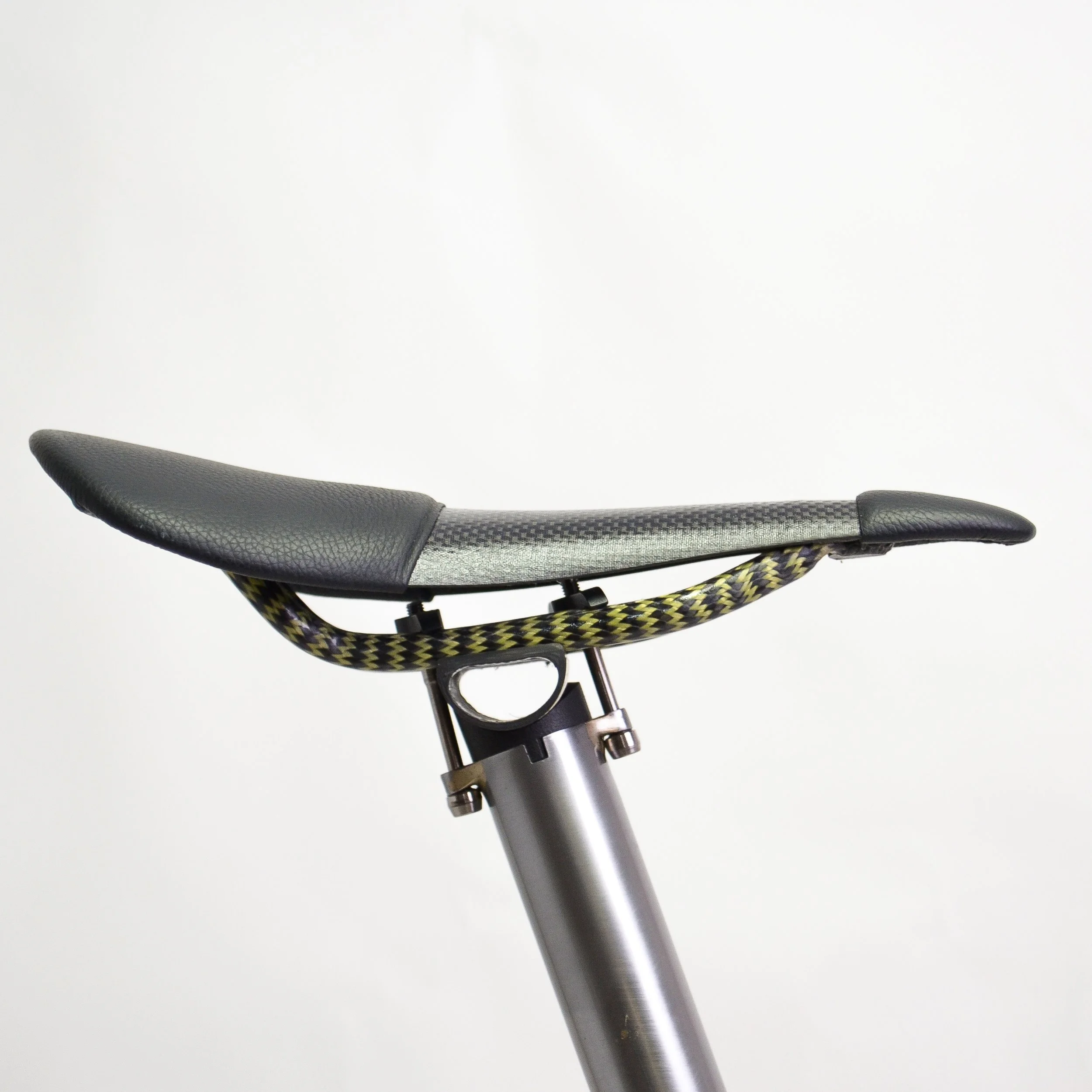

6. Minimalistic integrated saddle fixation.

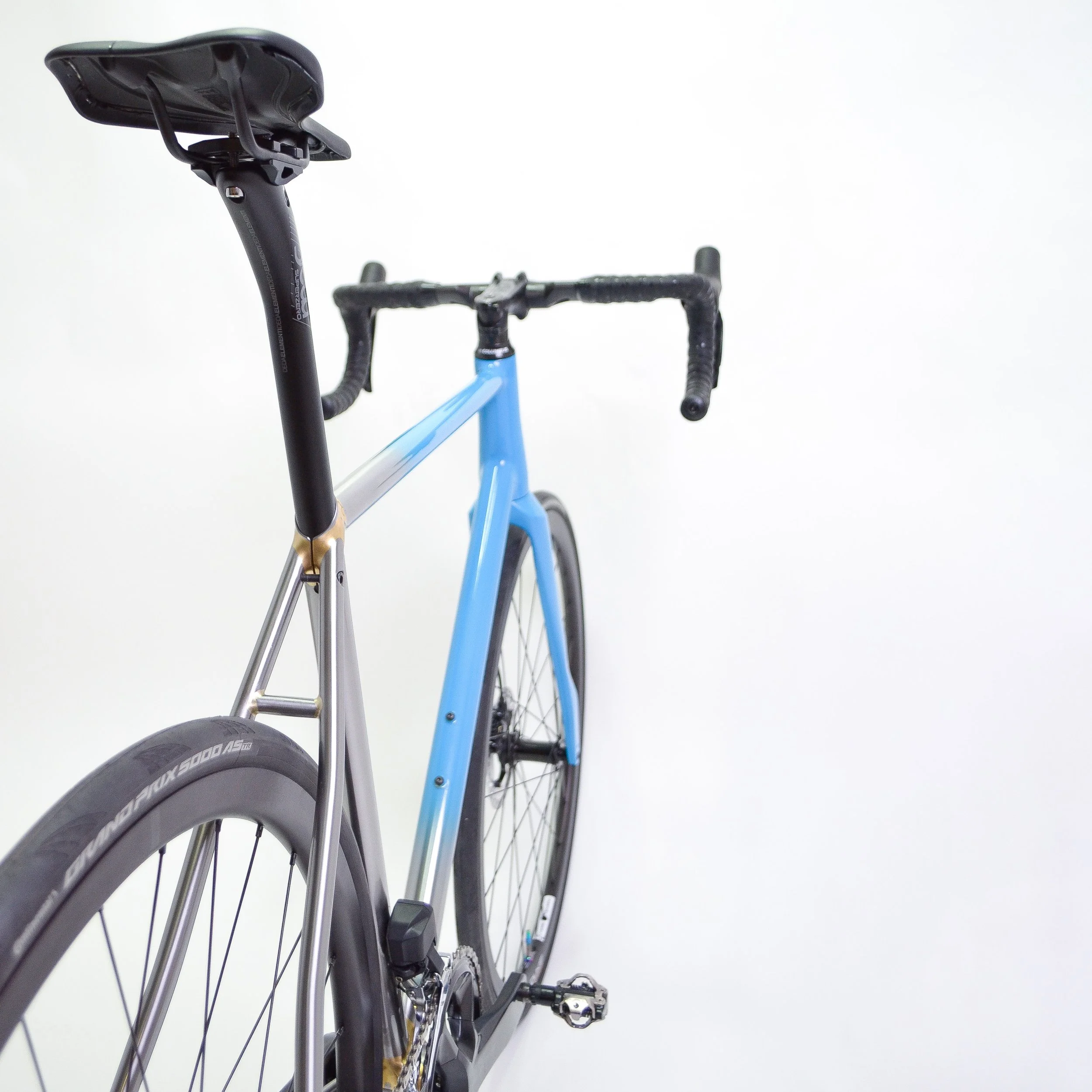

1. Individual geometry employing fillet brazed steel frame construction out of lightweight Columbus SPIRIT tubes. Finished with a color to clear gradient finish by velociao in Berlin.

2. Integrated Columbus Headset system

3. Full integrated cable management with the help of the deddaciai DCR system.

4. T47 bottom bracket shell which in-houses the integrated cables with fine logo engravement

5. Syntace X12 drop out system

6. Rear flat mount bosses

7. Integrated seat clamp attached to the seatstays

   Photos by adamgasson

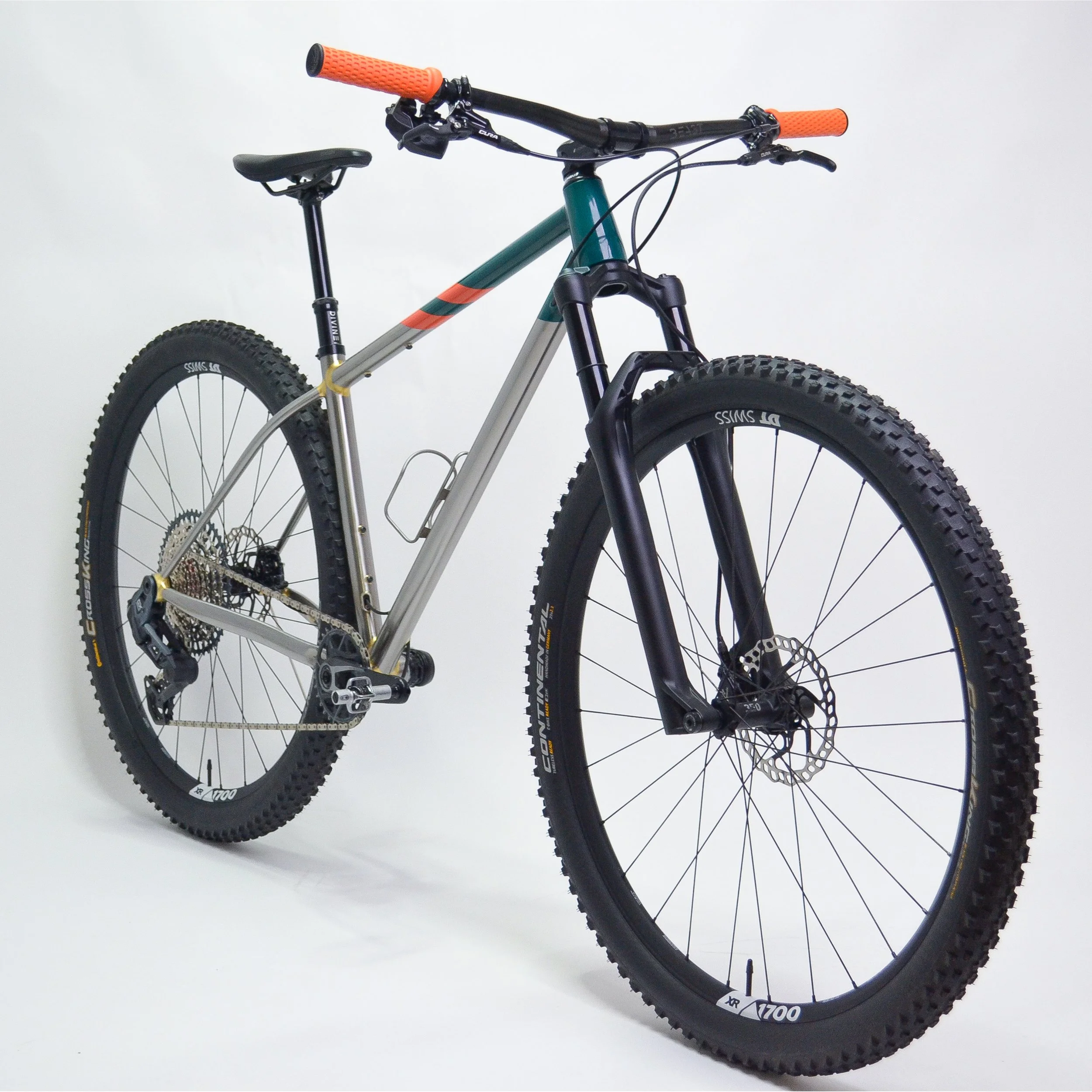

1. Individual hardtail MTB geometry employing fillet brazed steel frame construction out of lightweight Columbus SPIRIT tubes. Finished with a two color clear powder coating.

2. Integrated Columbus Headset system

3. Integrated Cable management for Rear brake hose and dropper post

4. Fine logo engravement in the bottom bracket shell

5. UDH drop out system

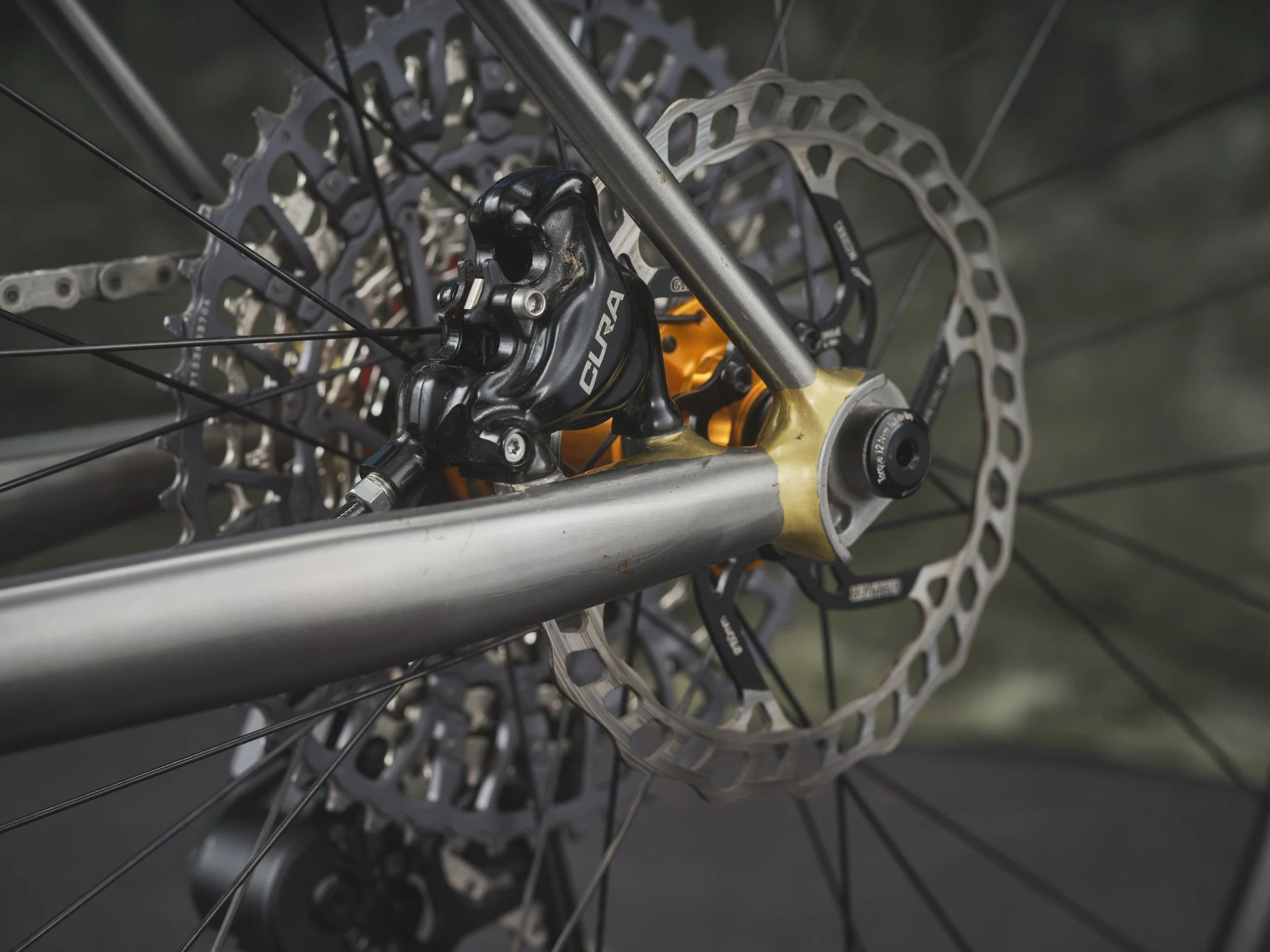

6. Integrated cable routing for rear flat mount disc brake

7. indentation in the seat tube for clearance of the rear wheel

   Photos by adamgasson

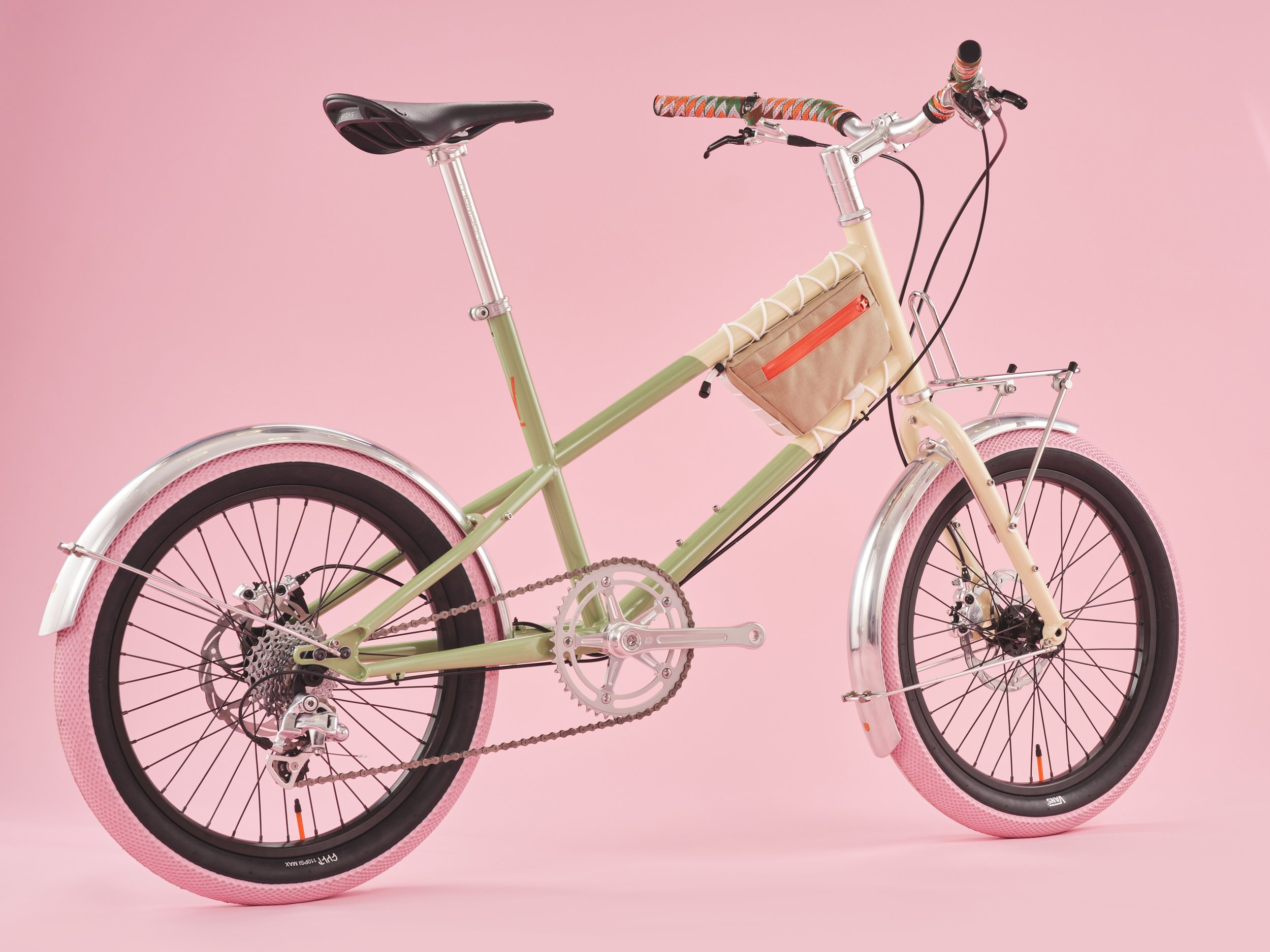

1. Individual minibike 20’ geometry employing TIG welded steel frame construction out of Columbus tubes. With a special powder coat finish.

2. In house manufactured unicrown fork out of Columbus tubing.

3. Front post mount disc brake bosses.

4. Fine logo engravement in the bottom bracket shell

5. Sliding dropouts for modular rear wheel setup

   Photos by adamgasson

1. Individual geometry employing fillet brazed steel frame construction out of Columbus ZONA tubes. Finished with a two tone powder coating.

2. In house manufactured Columbus MAX fork with V-Brake bosses and internal fender mounts and cable routing.

3. Ready for SON SL system dynamo-hubs

4. internal cable management including electro wire for the rear light.

5. Fine logo engravement in the bottom bracket shell

6. flat mount bosses for rear disc brake

7. indentation in the seat stays for clearance of the rear wheel

8. Integrated seat clamp attached to the seatstays

1. Individual geometry employing fillet brazed steel frame construction out of Columbus SPIRIT tubes. Designed with a tapered Headtube for internal headset and a special ovalized toptube. Finished with a very fine two color samurai paintshop by velociao in Berlin.

2. Integrated tubes for complete internal cable management.

3. Fine logo engravement in the T47 bottom bracket shell including internal cable routing.

4. flat mount disc brake bosses

5. 142mm true axles Syntace dropout system

6. Integrated seat clamp attached to the seatstays

1. Individual geometry employing fillet brazed steel frame construction out of Columbus ZONA tubes. Designed with a special type of chainstays which are extra developed for flat mount disc brake bosses. Finished with a popping orange one color paintshop by velociao in Berlin.

2. Integrated tubes for complete internal cable management.

3. Fine logo engravement in the bottom bracket shell.

4. Disc chainstays extra developed for suitable flat mount disc brake bosses.

5. 142mm true axles Syntace dropout system

6. Integrated seat clamp attached to the seatstays

1. Individual geometry employing fillet brazed steel frame construction out of Columbus ZONA Tubes. With special Megatube sections along the top- and downtube.

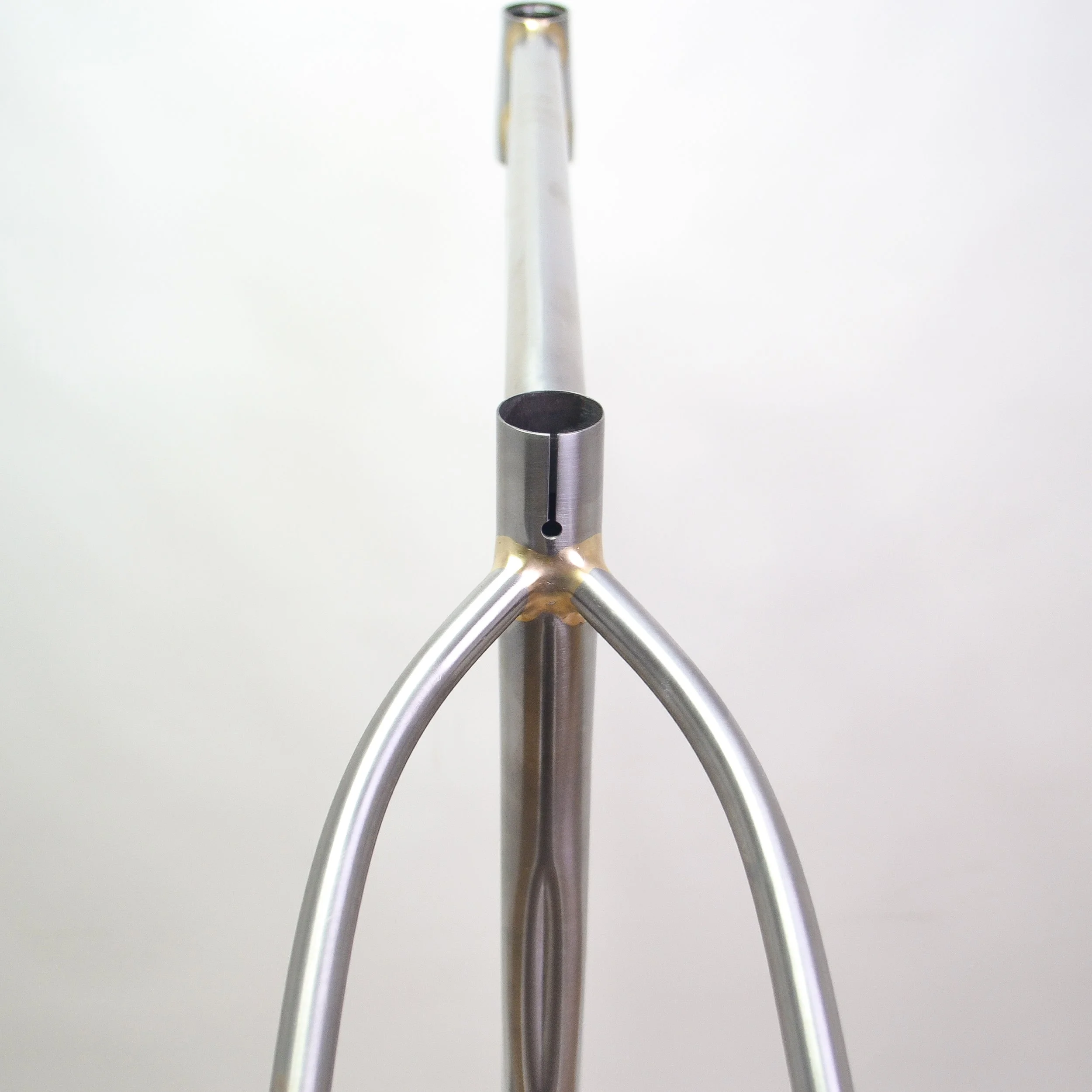

2. Straight Columbus MAX fork with internal lugged fork crown.

3. Embossed logo designs on the front dropouts

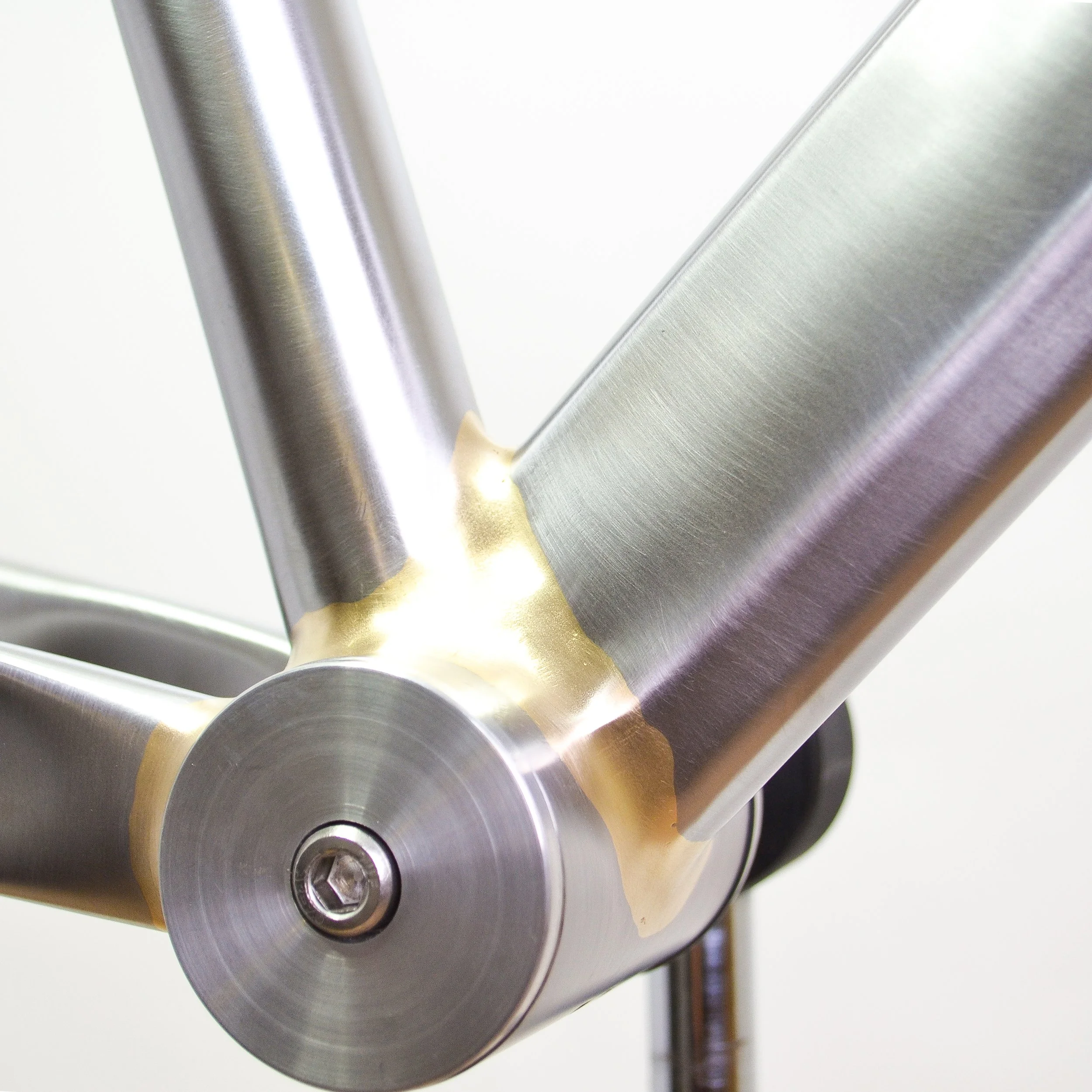

4. Silva stainless steel bottom bracket shell including fine logo design integration.

5. fine logo design integration in rear dropouts.

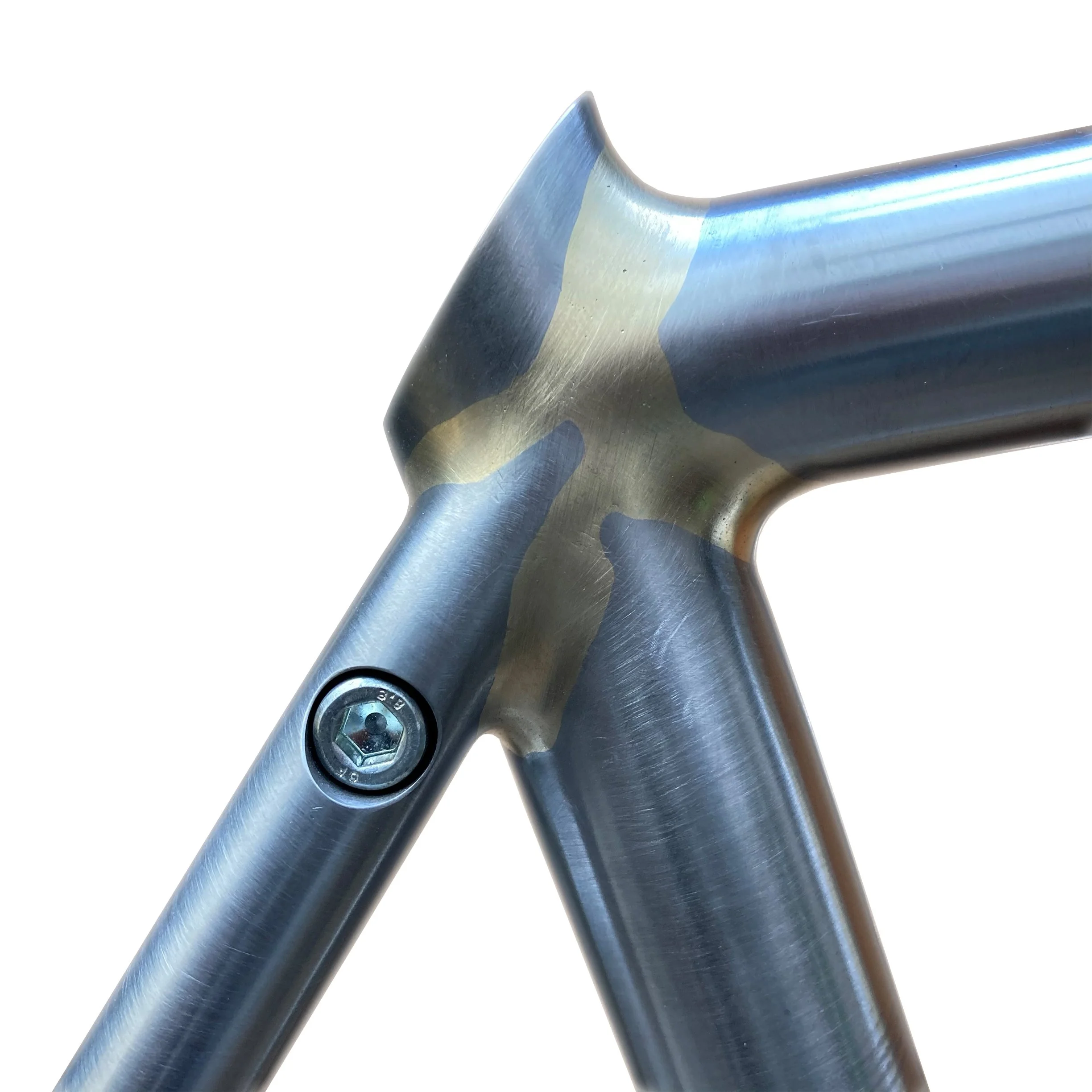

6. Integrated seatclamp in the seatstays.

1. Individual geometry employing fillet brazed steel frame construction out of Columbus ZONA Tubes.

2. Straight Columbus MAX fork with internal lugged fork crown.

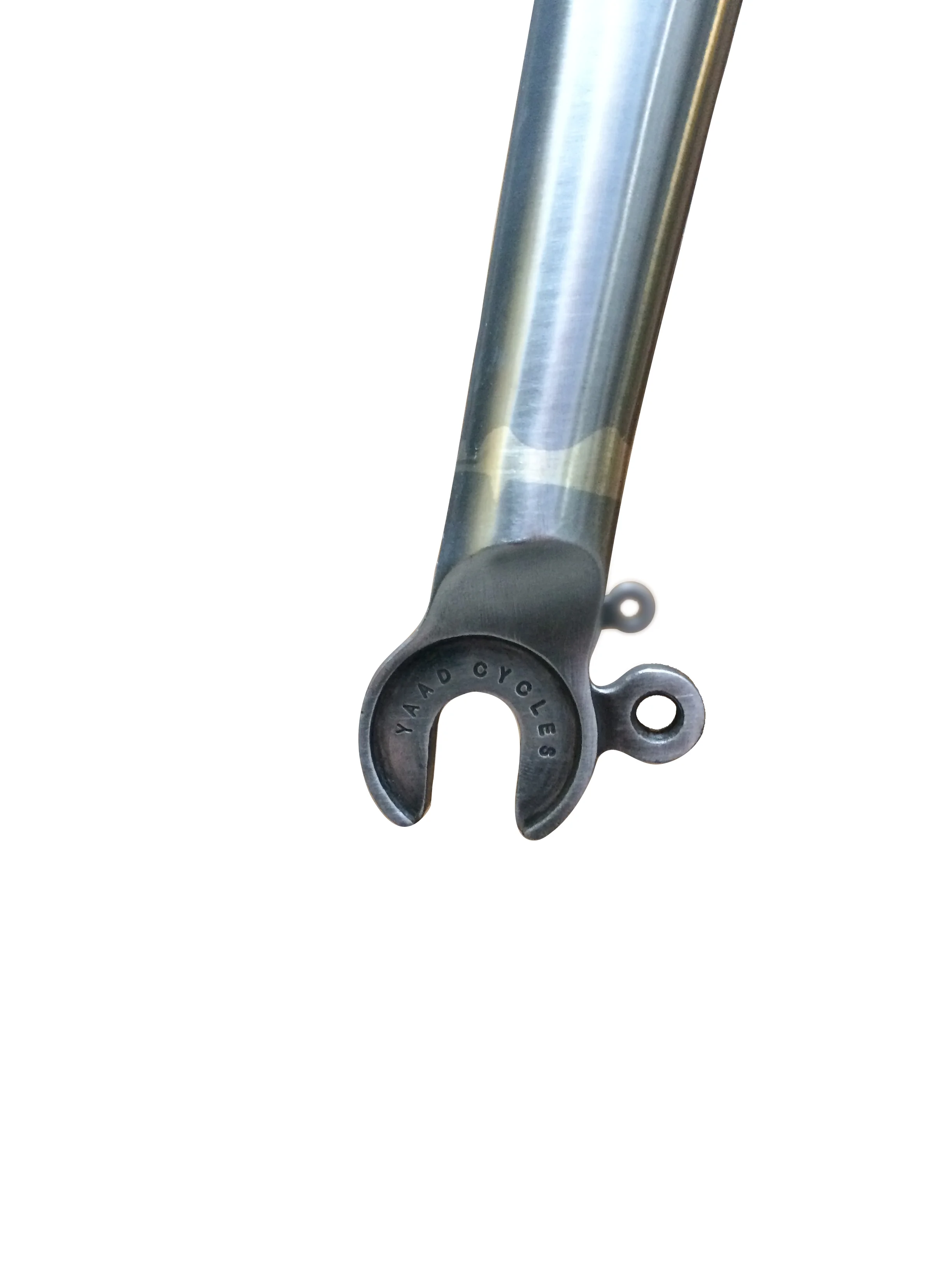

3. Embossed logo designs on the front dropouts

4. Silva stainless steel bottom bracket shell including fine logo design integration.

5. Hooded dropouts with replaceable hanger.

6. Integrated seatclamp in the seatstays.

7. Brazed on stainless steel boss for front derailleur.

8. Integrated cable routing

1. Individual geometry employing fillet brazed steel frame construction out of Columbus ZONA Tubes.

2. Straight fork with canti brake boss setup for V-brake and rack mounts

3. Embossed logo designs on the front dropouts

4. Silva stainless steel bottom bracket shell including fine logo design integration.

5. Casted track dropouts with fine logo embossment.

6. canti brake boss setup for V-brake

7. Integrated seatclamp in the seatstays.

8. Integrated cable routing

1. Step-through frame geometry employing fillet brazed steel frame construction out of Columbus ZONA Tubes.

2. Straight fork with Columbus MAX blades

3. Integrated cable routing

   for dynamo wiring.

4. Integrated cable routing in the downtube for rear brake, rear derailleur and dynamo wiring.

5. Silva stainless steel bottom bracket shell including fine logo design integration.

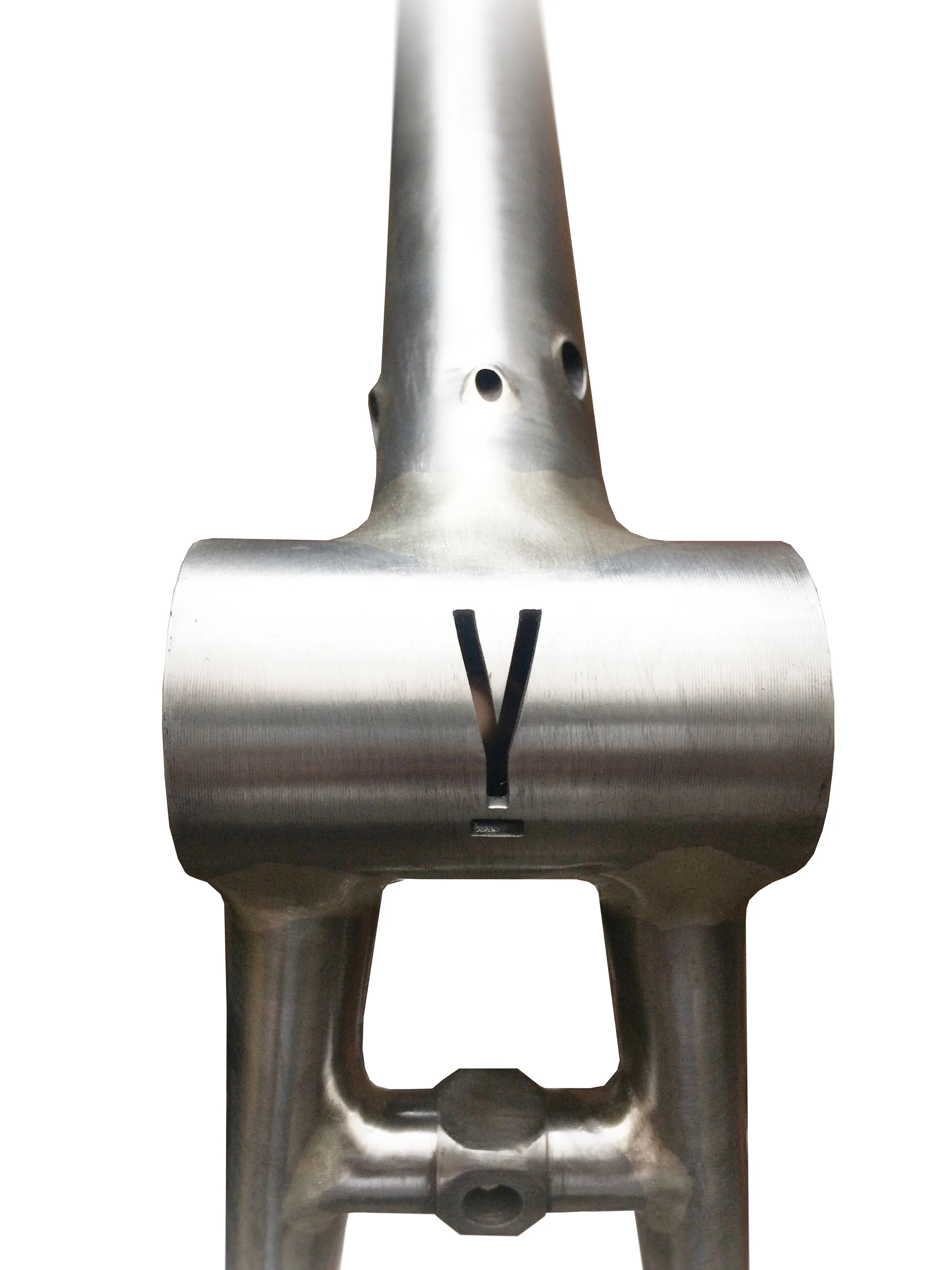

6. In house manufactured chainstay bridge including brake nut.

7. Rack mounts for custom designed rear rack

8. Integrated seatclamp in the seatstays.

1. Short Track frame geometry employing fillet brazed steel frame construction out of Columbus ZONA Tubes.

2. The downtube is formed by a Columbus ZONA Megatube with diamond shape cross section design, a stiff backbone.

3. Silva stainless steel bottom bracket shell including fine logo design integration.

4. Casted track dropouts with fine logo embossment.

5. Integrated seatclamp in the seatstays.
